KZE-B Thread-Locked Hydraulic Quick Coupling (Steel)

A 10,000 PSI thread-locked quick disconnect built from solid bar stock. The screw-on sleeve locks the connection in place — no accidental pop-offs under pressure or vibration. By HAND HYDRAULIC.

10,000 PSI Working PressureCarbon SteelThread-LockedParker 3000 & FASTER PVM Compatible

What Is the KZE-B Coupling?

A thread-locked hydraulic quick coupling designed for ultra-high-pressure portable hydraulic systems.

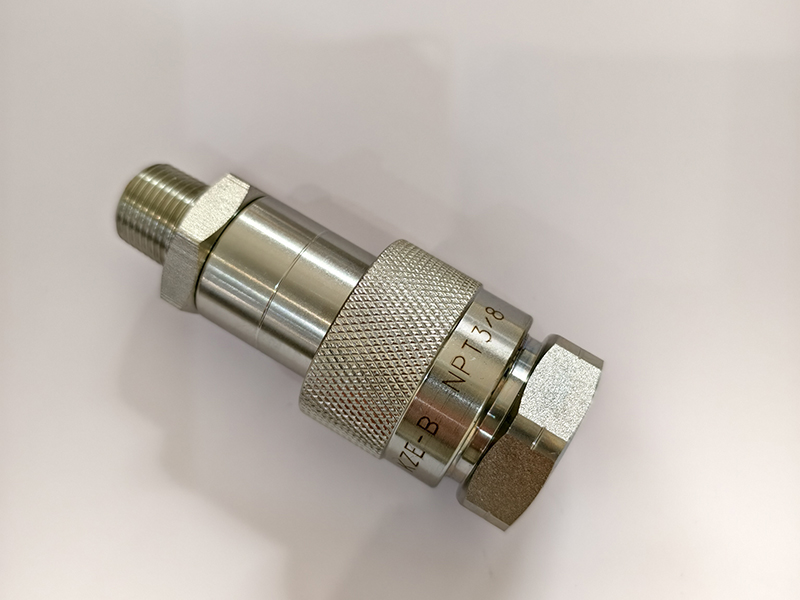

The KZE-B is a hydraulic quick coupling with a screw-on locking sleeve. Push the plug in, then twist the knurled nut to lock it down. That thread engagement is what separates the KZE-B from standard push-to-connect couplings — the mechanical lock stays put even when your hydraulic line pulses or vibrates.

HAND HYDRAULIC machines each KZE-B from solid carbon steel bar stock on CNC lathes. No casting. No porous welds. The result is a coupling that holds up under repeated pressure cycling at 10,000 PSI, which is why it shows up on portable hydraulic jacks, cylinder stands, and test benches around the world.

Both halves carry spring-loaded poppet valves with hardened alloy seats. When you disconnect, the poppets snap shut and trap fluid on each side. Reconnect, and the poppets push each other open to restore full flow. For more on how this works across our coupling lineup, see the HAND HYDRAULIC coupling selection guide.

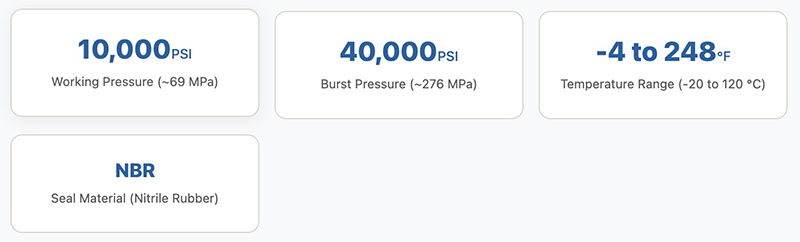

Key Specifications at a Glance

Pressure Ratings

10,000 PSI working pressure covers the full output range of most portable hydraulic jacks. The 4:1 burst-to-working ratio (40,000 PSI burst) gives you the safety margin that SAE and ISO standards require. If your system runs above 5,000 PSI and you are still using push-to-connect fittings, the KZE-B from HAND HYDRAULIC is the right upgrade.

Temperature & Sealing

The -20 °C to +120 °C (-4 °F to 248 °F) range covers standard shop and field conditions. NBR seals handle petroleum-based hydraulic oils without swelling. The internal polyurethane liner resists erosion from high-velocity flow. For extreme-temperature applications, contact HAND HYDRAULIC for custom seal options.

7 Design Features That Set the KZE-B Apart

1. Solid Bar Stock Construction

HAND HYDRAULIC machines each body from a single piece of carbon steel bar stock. No porosity, no weak spots from casting. The grain structure runs the full length of the part, which is why these couplings survive thousands of pressure cycles without cracking.

2. Thread-Locked Connection Mechanism

The socket carries an internal thread. After you seat the plug, rotating the knurled sleeve engages the thread and locks the two halves together. Under vibration or pressure spikes, that thread does not back off. Compare that to ball-detent couplings that can work loose over time. Browse all HAND HYDRAULIC quick couplings to find the right lock style for your setup.

3. Hardened Alloy Steel Poppet Valves

The poppet valves use flat alloy steel discs with surface-hardened ball-contact faces. That metal-to-metal seal holds tight at full working pressure. Traditional soft seals deform and leak over time; hardened seats do not. This is the same approach used in high-end screw-to-connect couplings.

4. Stainless Steel Valve Springs

Stainless springs resist fatigue and corrosion. After tens of thousands of connect-disconnect cycles, the poppets still snap shut the same way they did on day one. HAND HYDRAULIC specifies 302-series stainless for all KZE-B valve springs.

5. Polyurethane Internal Liner

High-velocity hydraulic fluid erodes ordinary rubber liners quickly. The KZE-B uses a polyurethane sleeve inside the coupling body. Polyurethane handles abrasive flow far better than NBR alone, which adds months (sometimes years) to the service life in high-cycle applications.

6. Threaded Valve Seat for Self-Centering

The valve seat threads into the body, which does two things. First, it reinforces the check-valve function when disconnected. Second, it self-centers the poppet every time the coupling closes. Consistent centering means consistent sealing, every single cycle.

7. Cross-Brand Compatibility

The HAND HYDRAULIC KZE-B interchanges directly with Parker 3000 series and FASTER PVM series couplings. Same thread, same poppet geometry, same pressure rating. Drop-in replacement — no hose changes, no adapter fittings needed.

Parker 3000 Series CompatibleFASTER PVM Series Compatible

Where the KZE-B Fits

Built for Ultra-High-Pressure Portable Hydraulics

The KZE-B was designed around one job: connecting and disconnecting hydraulic lines on portable equipment that runs at or near 10,000 PSI. The thread lock keeps the connection solid when the pump is cycling. The poppet valves keep fluid contained when you break the line. Common applications include:

Portable hydraulic jacksHigh-pressure hydraulic toolsAutomotive shop equipmentConstruction machineryHydraulic test standsMobile hydraulic power units

Design note: Both socket and plug carry spring-loaded positive-seal poppets. The hardened metal seats create a right-angle seal at disconnect. Combined with the polyurethane liner, the KZE-B achieves near-zero leakage when you break the connection — even at full working pressure. Need help choosing between thread-locked and screw-to-connect styles? See the HAND HYDRAULIC selection guide.

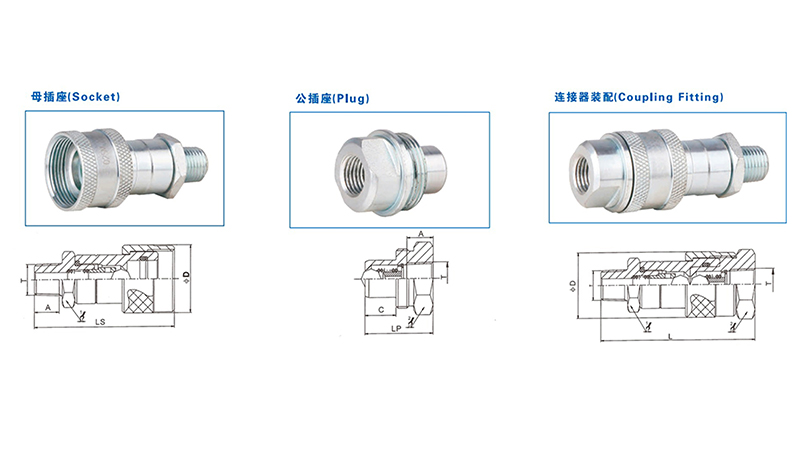

Product Series & Part Numbers

Three component types, two thread sizes each. Mix and match for your circuit layout.

Socket (Female End)KZE-B-03SN / KZE-B-05SN

Plug (Male End)KZE-B-03SPF / KZE-B-05SPF

Coupling FittingKZE-B-03 / KZE-B-05

Part Numbers & Dimensions

All dimensions in millimeters. Thread sizes in NPT.

Pressure-Flow Performance Curves

Test data per SAE J1065 / ISO 10763. Medium: ISO VG46 hydraulic oil at 40 °C.

Test medium: ISO VG46 hydraulic oil | Temperature: 40 °C +/- 2 °C | Standard: SAE J1065 / ISO 10763
1 GPM = 3.785 L/min | 1 PSI = 0.00689 MPa

Frequently Asked Questions

Common questions about the HAND HYDRAULIC KZE-B thread-locked coupling.

Q1: What is the maximum working pressure of the KZE-B coupling from HAND HYDRAULIC?

The HAND HYDRAULIC KZE-B is rated for 10,000 PSI (about 69 MPa) working pressure, with a burst pressure of 40,000 PSI (276 MPa). That 4:1 burst-to-working ratio meets standard safety requirements for ultra-high-pressure hydraulic equipment.

Q2: Is the HAND HYDRAULIC KZE-B compatible with Parker 3000 series couplings?

Yes. The HAND HYDRAULIC KZE-B is fully interchangeable with Parker 3000 series and FASTER PVM series couplings. You can swap KZE-B components directly into existing Parker or FASTER hydraulic systems without modifying fittings or hose assemblies.

Q3: How does the thread-locked mechanism on the HAND HYDRAULIC KZE-B work?

The HAND HYDRAULIC KZE-B socket has an internal thread on the knurled sleeve. After pushing the plug into the socket, you rotate the sleeve to engage the thread. This creates a mechanical lock that prevents accidental disconnection under pressure or vibration — a common failure point with push-to-connect couplings.

Q4: What seal material does the HAND HYDRAULIC KZE-B use?

The HAND HYDRAULIC KZE-B uses NBR (nitrile rubber) for the main seals and polyurethane for the internal liner. NBR handles petroleum-based hydraulic fluids without swelling. The polyurethane liner resists high-velocity fluid erosion inside the coupling body.

Q5: Can the HAND HYDRAULIC KZE-B be disconnected under pressure?

The HAND HYDRAULIC KZE-B has spring-loaded poppet valves with hardened alloy steel seats. These close automatically when you disconnect, trapping fluid on both sides. That said, always follow your system's safety procedures — depressurize the line before disconnecting whenever possible.

Q6: What thread sizes are available for the HAND HYDRAULIC KZE-B?

The HAND HYDRAULIC KZE-B comes in two NPT thread sizes: 1/4" (models KZE-B-03SN, KZE-B-03SPF, KZE-B-03) and 3/8" (models KZE-B-05SN, KZE-B-05SPF, KZE-B-05). Both cover the most common portable hydraulic equipment connections. Need a different thread standard? Contact HAND HYDRAULIC for custom options.

Related HAND HYDRAULIC Products

Explore other couplings in the HAND HYDRAULIC lineup.

KZE-A Screw-to-Connect

Push-to-connect with ball detent. Lower pressure, faster connect.

All Hydraulic Quick Couplings

Browse the full coupling catalog by size and pressure rating.

Coupling Selection Guide

Not sure which coupling type fits your system? Start here.
