The fitting went on by hand. Three full turns, smooth, no grinding. The wrench finished the job and the nut felt tight. One pressure cycle later, a thin ring of oil appeared on the cone. If you source hydraulic fittings for machines that mix inch and metric hardware, this scene costs real money, and JIC 37° versus metric 24° cone confusion is usually the reason. Here is what actually happens, how to spot it in sixty seconds, and what to write on the PO instead.
No. Not with torque, not with sealant, not with a bigger wrench.
Two independent things go wrong. First, the sealing surfaces never meet correctly. A JIC male closes on a 37° external cone. A metric male per ISO 8434-1 closes on a 24° cone. Put a 37° nose into a 24° seat and the metal touches on a thin line at one edge of the cone, not across a band. A line contact has almost no sealing area, so system pressure pushes straight through it.
Second, the threads never reach designed engagement. The joint binds on debris-crossed threads before the cone loads up, so the operator reads "tight" while the cone sits half-seated. Tight and sealed are different things.
This is the part that fools experienced buyers. Inch and metric threads are close enough in several popular sizes to start turning by hand. The male runs in cleanly for two or three turns, then jams. On the bench, three good turns feels like proof of compatibility. It is actually proof of a near-miss.
JIC male (UN/UNF) | Major Ø | Pitch | Nearest metric port | Pitch | What happens on the bench |
|---|---|---|---|---|---|
7/16"-20 UNF (dash -04) | 11.11 mm | 1.27 mm | M12x1.5 | 1.50 mm | Starts, jams within two turns |
9/16"-18 UNF (dash -06) | 14.29 mm | 1.41 mm | M14x1.5 | 1.50 mm | Runs several turns, then binds hard |
3/4"-16 UNF (dash -08) | 19.05 mm | 1.59 mm | M20x1.5 | 1.50 mm | Starts, jams with the nut still loose |
1-1/16"-12 UNF (dash -12) | 26.99 mm | 2.12 mm | M27x2 | 2.00 mm | The worst pair: within 0.01 mm on diameter |
That last row is the one that ends up in a claims email. A -12 JIC male and an M27x2 port differ by a hundredth of a millimeter in diameter and 0.12 mm in pitch. The threads engage far enough to wreck both components if you force the wrench.
The confusion survives because both fittings look like a "male cone seat" at arm's length. On the spec sheet they share almost nothing.
Feature | JIC 37° | Metric 24° cone |
|---|---|---|
Sealing cone | 37° external cone | 24° external cone |
Thread | UN/UNF inch threads | Metric parallel threads per DIN 3852 |
Standard | SAE J514 / ISO 8434-2 | ISO 8434-1 / DIN 3853 |
Seal principle | Metal-to-metal on the cone | Metal-to-metal on the cone; O-ring-on-cone variants exist |
Size range | Dash -02 to -32 | M12 to M52, light and heavy series |
Where you meet it | North American mobile equipment | European and Asian-built machinery |

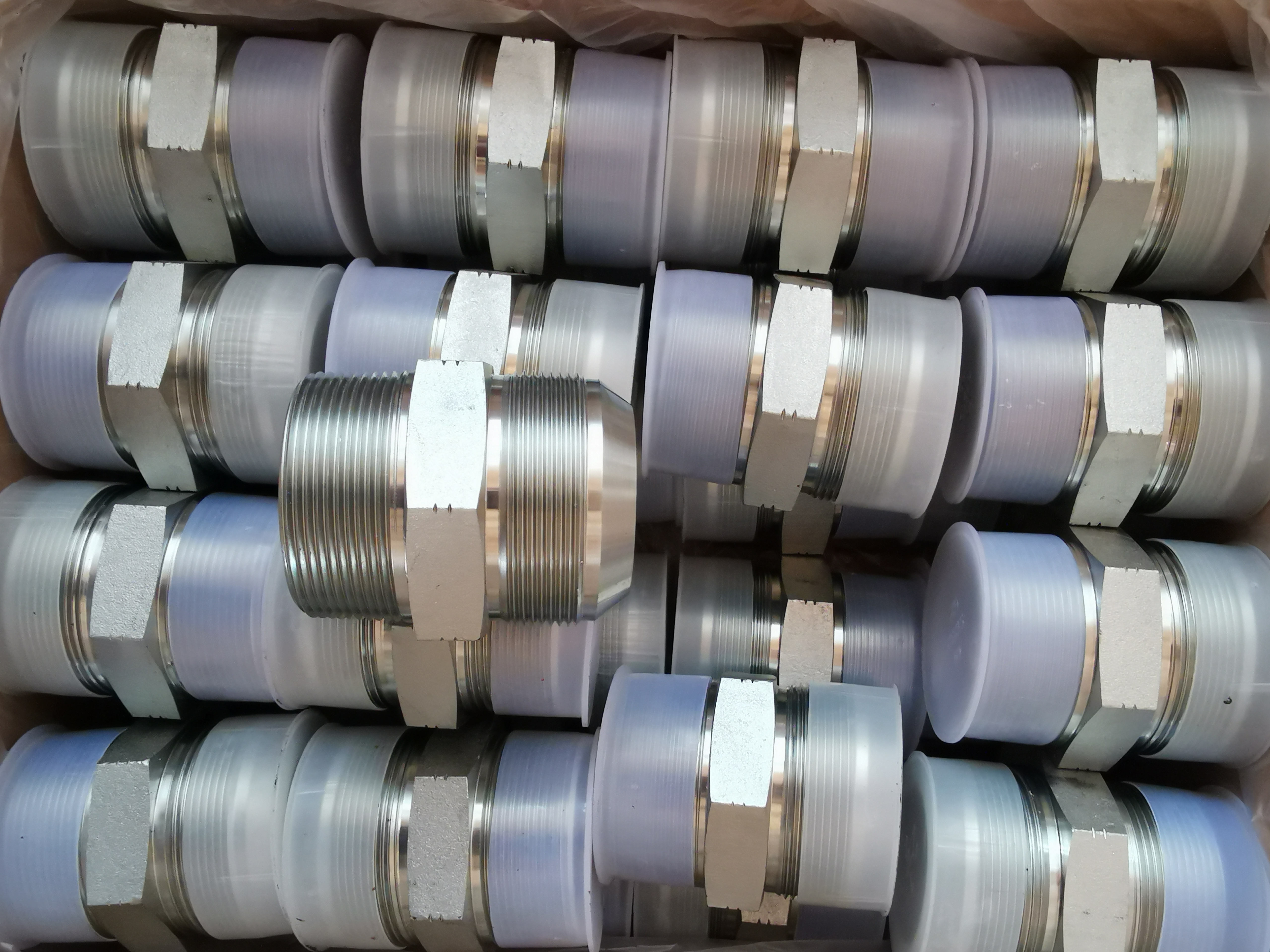

A JIC male such as the 1JB-WD carries a 37° cone and UNF thread — a completely different sealing geometry from a metric 24° cone male.
No, and chasing these fixes makes the failure harder to diagnose. Sealant sits in the thread, not on the cone, and the leak path is the cone. Thread tape does nothing for a metal-to-metal seat and shreds into the system. Extra torque only deforms the cone edge, which guarantees the fitting cannot be reused and can crack a thin-walled female swivel.
The honest diagnosis: once the two cone angles differ, no additive at the bench fixes geometry. Torque to the manufacturer's chart, never to feel — our earlier article on torque versus feel covers why the wrist is a poor torque wrench. If the cone angles do not match, stop and swap the component.
Receiving inspection needs no lab. Four checks, ten seconds each:
Pitch gauge on the thread. A reading of 1.27, 1.41, or 1.59 mm means UNF and therefore JIC. A reading of 1.5 or 2.0 mm means metric. This one check catches every trap pair in the table above.
Major diameter. Calipers separate the near-misses: 14.29 mm is a -06 JIC, 14.00 mm is M14. Write both numbers on the bin label.
Cone angle gauge. A 37°/45°/24° three-step seat gauge costs less than one returned hose assembly.
Look for an O-ring groove on the nose. A groove behind a 24° cone means the metric O-ring variant, a third look-alike that adds to the confusion.
Then label the bins by standard, not by size. A bin marked "3/4 male cone" is where the mixing starts.
Adapt, do not substitute. A hose assembly can carry a different fitting family on each end — that is normal and it is how every mixed-market machine gets serviced. The rule is simple: one fitting per end, matched to that end's port, and never a cross-threaded compromise in between.
For JIC ends, a straight male like the 1JB-WD JIC male 74° cone adapter covers dash sizes -04 upward in carbon steel with an adjustable thread connector.
For metric ends, a fitting like the 10411 metric male 24° cone seat crimp fitting lands the same hose on an M12 to M52 port per ISO 8434-1.
For rigid-to-rigid conversions, order a proper adapter in the correct family pair instead of re-threading anything.
Hand Hydraulic machines both families on the same production line, so a single order can cover a mixed machine — JIC ends, metric ends, and the adapters between — with one freight bill and one inspection standard.
The interchange trap is usually created on paper, not at the bench. Four lines on your purchase documents close it:
Name the standard, not the shape. A line item that reads "male cone seat, 3/4" invites either family. Write "JIC male 37°, 3/4"-16 UNF, dash -08" or "metric male 24° cone, M20x1.5" — thread callout included.
Ask the supplier to state the standard on the carton. Hand Hydraulic prints the thread family on every carton label, so receiving sorts bins without opening boxes and the near-miss sizes never share a shelf.
First-article check with a pitch gauge. One measured sample per part number per shipment. The gauge costs minutes; a cross-mated batch costs a machine down.
Keep both families under one supplier. Splitting JIC and metric across two factories doubles the chance that packaging, labels, and tolerances drift apart.
No. The two joints touch on different cone angles, so contact happens on a thin line instead of a sealing band. The threads also follow different standards, so the joint cannot reach proper torque. Any joint made this way will weep, and vibration turns the weep into a drip.
Because several popular sizes are almost the same diameter and pitch. A -12 JIC male at 1-1/16 inch-12 UNF measures 26.99 mm with a 2.117 mm pitch, and an M27x2 port measures 27.00 mm with a 2.00 mm pitch. The male starts, turns two or three times, and then binds. That partial engagement is the trap.
Adapt, do not substitute. Crimp the correct fitting on each end: a JIC male such as the 1JB-WD where the hose meets a JIC port, and a metric 24° cone fitting such as the 10411 where it meets a metric port. Hand Hydraulic supplies both families from the same production line, so one order can cover the mixed machine without any cross-mating.
Measure the thread first. Use a pitch gauge: 1.27, 1.41, or 1.59 mm readings mean UNF and therefore JIC, while 1.5 or 2.0 mm readings mean metric. Then check the cone with a 37° or 24° seat gauge, and look for an O-ring groove on the nose, which signals a metric 24° cone variant. Ten seconds per fitting once the gauges sit on the bench.
