One adapter, two standards. JIC 74° cone thread on one end, SAE light-series flange on the other.
The 1JFL series is a transition adapter for hydraulic systems. One end carries a JIC male 74° cone thread (SAE J514). The other end carries an L-series light flange.
This design lets you connect a JIC port to a flange-mounted hose or component without extra adapters. It cuts parts, shortens the assembly, and removes a potential leak point.

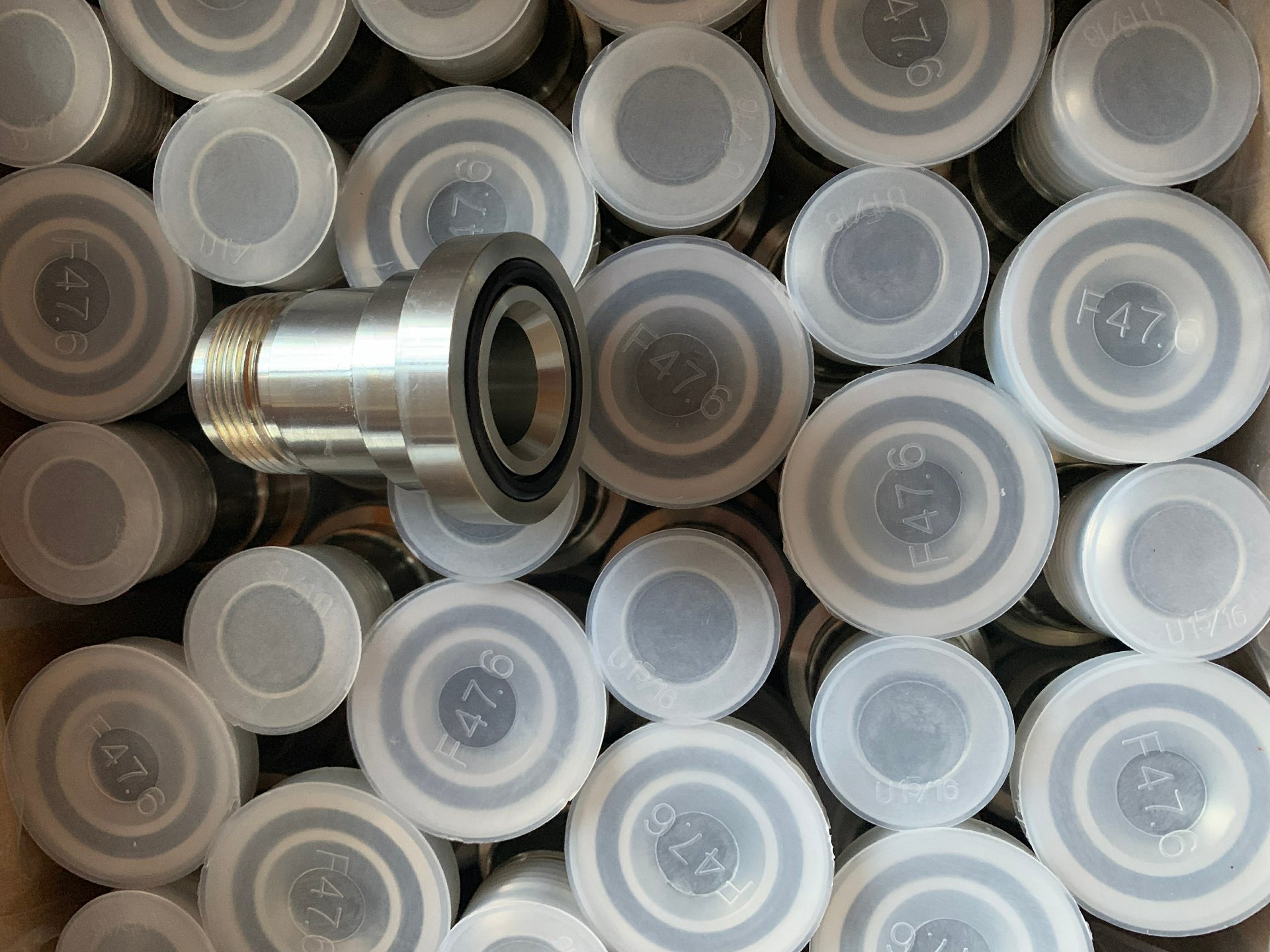

HAND HYDRAULIC machines the 1JFL series from solid bar stock. Each piece is CNC-machined, then pressure-tested before packing. Every unit leaves the factory with a plastic end cap over the sealing cone.
74° cone sealing face. The JIC male end seals on the 74° cone, a proven metal-to-metal seat for high-pressure oil lines.
L-series flange end. Matches SAE code 61 light-series flange dimensions for bolt-on connections.
17 standard sizes. Threads from U3/4" x 16 up to U2-1/2" x 12, flanges from 1/2" to 2".
Clean factory finish. Zinc-plated carbon steel as standard; stainless steel available on request.
Protected delivery. Plastic end caps keep threads and cones free of dirt and scratches in transit.

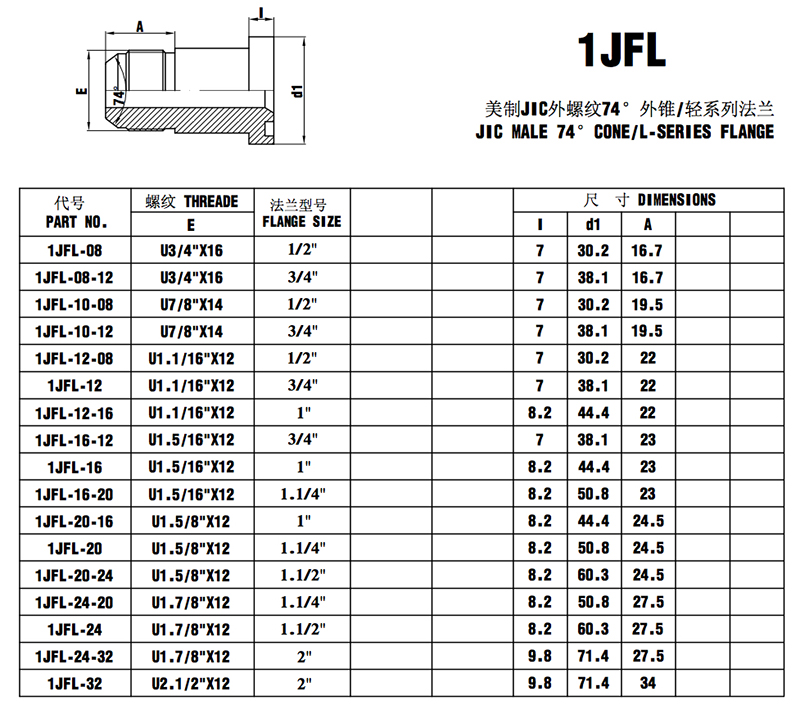

Dimensions below are in millimetres. The table covers every standard model in the 1JFL range.
Need a size you do not see here? HAND HYDRAULIC machines non-standard JIC-to-flange adapters to your drawing. Send us the dimensions and we will quote it.
The 1JFL adapter shows up wherever a machine needs to join a JIC port to a flange line:
Hydraulic power units. Pump outlets and valve manifolds often use flange connections for large bores.
Construction and earthmoving equipment. Excavators and loaders rely on flange fittings on high-pressure circuits.
Industrial machinery. Presses, injection moulding machines, and machine tools with hydraulic actuation.
Agricultural equipment. Tractors and harvesters with JIC plumbing and flange-mounted components.
HAND HYDRAULIC has supplied hydraulic fittings and adapters to machine builders and distributors for over a decade. Three things set the 1JFL series apart:
Consistent thread quality. Every JIC male thread is gauged before it ships. A bad thread means a leak on your line.
Real stock, fast dispatch. The 17 standard models are kept in stock. Small orders ship fast; bulk orders get volume pricing.
One supplier, full range. Pair the 1JFL series with JIC fittings, flange kits, and hose fittings from the same source.
JIC is a US standard (SAE J514) for hydraulic fittings. The male end has a 74° cone seating face that seals against the female 37° flare seat. The 1JFL series combines this JIC male thread with an L-series flange end, so one adapter connects a JIC port to a flange-mounted hose or component.
The 1JFL series covers L-series (light series) flanges from 1/2 inch to 2 inches. The flange end matches SAE code 61 style light-series flange dimensions, with d1 from 30.2 mm to 71.4 mm.
Thread sizes run from U3/4 inch by 16 to U2-1/2 inch by 12 UNF. The 17 standard models cover 3/4, 7/8, 1-1/16, 1-5/16, 1-5/8, 1-7/8 and 2-1/2 inch JIC male threads.
Yes. HAND HYDRAULIC pressure-tests and dimension-checks every 1JFL adapter before it leaves the factory. Each unit ships with a protective plastic end cap so the threads and sealing cone stay clean and damage-free.
Yes. HAND HYDRAULIC supplies the 1JFL series in carbon steel and stainless steel, with zinc-plated or bare finishes. Contact our sales team with your material, plating and quantity to get a quotation.
HAND HYDRAULIC keeps the 17 standard 1JFL sizes in stock. Small trial orders are welcome, and volume pricing applies to bulk orders. Send us your requirement list and we will reply with pricing within one business day.
Send your model list and quantity. HAND HYDRAULIC replies with pricing within one business day.
