The 22613 fitting is a straight crimp hose end with a BSP female 60° cone port connection. It joins two-wire braid hydraulic hoses to British-standard 60° cone ports. OEMs, hose assembly shops, and machinery exporters across Europe, Asia, and Oceania order this fitting in bulk. This guide explains how the 22613 works, which sizes are available, and how to order the right one.

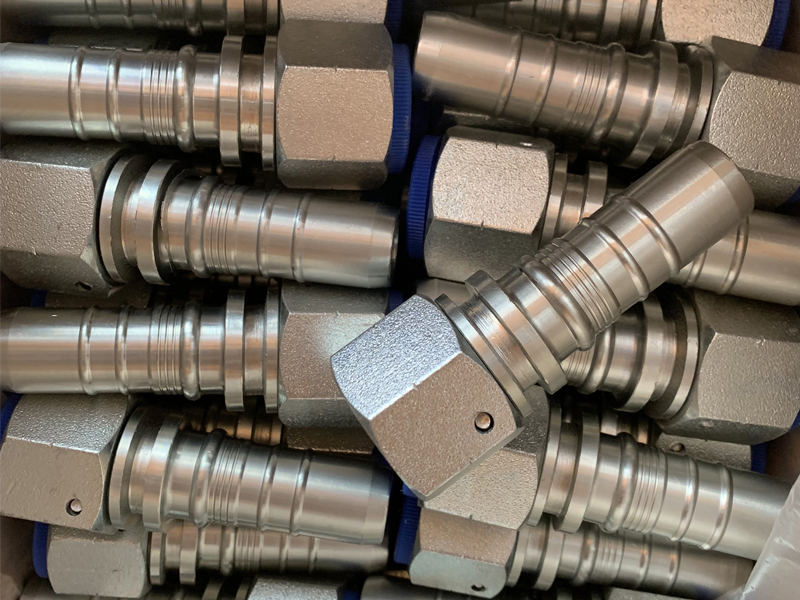

A 22613 fitting is a one-piece crimp hose fitting. The hose side carries an interlock stem with serrations that grip the wire reinforcement of the hose. The port side has a BSP female parallel thread (G thread, ISO 228-1) with an internal 60° cone seat. The cone seals metal-to-metal against a matching male 60° cone, so no O-ring is needed at the port. Hand Hydraulic machines the 22613 from carbon steel bar stock and applies Cr6-free zinc plating for corrosion protection. See the 22613 product page for pricing and stock sizes.
Interlock stem bites into the hose wire reinforcement for maximum grip
BSP female parallel thread with 60° cone seat, no O-ring needed at the port
Carbon steel construction with Cr6-free zinc plating
Designed for two-wire braid hoses such as SAE 100R2AT and EN 853 2SN
Standard dash sizes from -12 to -32 (3/4" to 2" hose ID)
100% pressure tested before delivery
The table below lists the standard 22613 sizes with dash code, BSP thread, hose ID, and working pressure on a typical two-wire braid hose (SAE 100R2AT). Non-standard threads and hose IDs can be produced to order.
Part Number | Dash Size | Thread (BSP Female) | Hose ID | Working Pressure (SAE 100R2AT) | Material / Finish |
|---|---|---|---|---|---|
22613-12-12 | -12 | G3/4 | 3/4" (19 mm) | 280 bar (4,060 psi) | Carbon steel, Cr6-free zinc plating |
22613-16-16 | -16 | G1 | 1" (25 mm) | 250 bar (3,625 psi) | Carbon steel, Cr6-free zinc plating |
22613-20-20 | -20 | G1-1/4 | 1-1/4" (32 mm) | 210 bar (3,045 psi) | Carbon steel, Cr6-free zinc plating |
22613-24-24 | -24 | G1-1/2 | 1-1/2" (38 mm) | 185 bar (2,680 psi) | Carbon steel, Cr6-free zinc plating |
22613-32-32 | -32 | G2 | 2" (51 mm) | 155 bar (2,250 psi) | Carbon steel, Cr6-free zinc plating |
The 60° cone is a metal-to-metal seal. When you tighten the fitting, the internal cone of the 22613 presses against the male cone on the port. The line contact deforms slightly and creates a tight seal that holds high pressure. This design handles pressure pulses and vibration well. It also tolerates repeated assembly and disassembly, as long as you replace the assembly when the cone shows damage or deep wear marks. For sealed port systems with elastomer seals, explore ORFS and SAE O-ring boss fittings instead.
The 22613 is a workhorse in high-pressure hydraulic circuits with BSP ports. Typical applications include:
Construction excavators, loaders, and cranes
Agricultural tractors and harvesters
Industrial hydraulic power units and presses
Material handling equipment and forklifts
Mining and quarry machinery
Every 22613 fitting is machined from certified bar stock and pressure tested before it leaves the factory. The quality team checks thread accuracy, cone angle, and plating thickness on every batch. Popular sizes ship from stock, and custom sizes run quickly on CNC lathes. Buyers also get full crimp data support so their assembly lines can set dies and crimp diameters correctly the first time.
A 22613 hydraulic fitting is a straight crimp hose end with a BSP female 60 degree cone port connection. The hose side has an interlock stem that grips the wire reinforcement of the hose, and the thread side seals metal-to-metal against a matching 60 degree male cone.
Interlock means the fitting stem locks into the hose reinforcement. Serrations and a support shoulder bite between the wire braids, so the crimped ferrule and the hose form one solid assembly. This design resists blow-off under pressure pulses and vibration.
22613 fittings pair with two-wire braid hydraulic hoses such as SAE 100R2AT and EN 853 2SN. They also suit some 1SC and 2SC compact wire braid hoses. Always match the fitting to the hose brand and construction using the correct crimp specification.
The difference is the thread standard and the cone angle. BSP 60° cone fittings use British Standard Pipe threads and seal on a 60 degree cone. JIC 74° cone fittings use UN/UNF threads and seal on a 74 degree cone. The two systems are not interchangeable.
Yes. Custom sizes, stainless steel versions, and special surface treatments are available on request. Send the drawing or a sample, and the engineering team will confirm the solution and lead time.
Explore more hose ends and adapters from Hand Hydraulic:
Ready to order 22613 BSP female 60° cone interlock fittings? Send your size list, hose specification, and quantity. The team replies with pricing, lead time, and freight options.
