5 Steps From a Port Callout to the Right Hydraulic Fitting — and What the Shortcut Costs

The drawing says: port, 3/4-16 UN. That single line is where hydraulic fitting selection goes wrong, because 3/4-16 UNF is also the thread of a JIC male and the thread of an SAE O-ring boss stud. Two paths sit in front of every design engineer at this point. One orders by size and pays for it in rework. The other walks five steps from the port callout to a fitting part number that is right the first time. Here is the shortcut, here are the five steps, and here is what each skipped step costs.

Two Ways to Order Fittings From the Same Drawing

A hydraulic schematic does not hand you a part number. It hands you a port: a thread size, sometimes a standard, rarely more. The engineer's job is to turn that callout into a fitting that matches four things at once — thread, seal, geometry, and pressure rating.

Teams handle this in one of two ways. The fast way reads the nominal size and orders. The reliable way runs the callout through a fixed sequence and ends at a part number. Both reach a purchase order. Only one of them reaches it once. It is the same sequence Hand Hydraulic walks when a drawing arrives for quotation.

The Shortcut: Order by Size, Pay in Rework

The shortcut sounds reasonable. The port is 3/4, so order a 3/4 male adapter. Here is what that order actually risks:

• Wrong family, same size. A -08 JIC male and a -08 SAE O-ring boss stud both carry a 3/4-16 UNF thread. They are the same size and two different joints. One seals on a 37° metal cone, the other on an O-ring at the boss face.

• Wrong seal principle. A taper thread ordered against a parallel port, or a cone ordered against a boss, does not announce itself at receiving. It announces itself on the first pressure cycle.

• Wrong configuration. A straight adapter ordered where the routing needs a tee turns one fitting into three joints, a bracket, and a longer assembly.

• Wrong rating. A light-series stud on a 6000 PSI line holds at bench test and walks loose in service.

Add the loop together — quote again, ship again, receive again, crimp again — and a two-minute shortcut becomes a two-week hole in the build schedule. The five steps below close each of these doors in order.

Five Steps From Port Callout to Part Number

Start at the port, not at the catalogue. Each step fixes one attribute of the fitting, and each one narrows what the final part number can be.

Step 1: Read the Full Callout, Not the Nominal Size

Transcribe every character on the drawing before you open a catalogue. A complete callout names the thread and the standard. Partial callouts invite the wrong family.

Notice the first two rows. Same 3/4-16 thread, two different joints. The dash size is the same too. Only the standard in the callout separates them. Keep the dash-to-thread map next to the print, because the dash number sizes the tube, not the joint:

Step 2: Name the Seal Before the Thread

Threads tell you what screws in. Seals tell you what holds. Before anything else, write down the seal principle the joint uses: 37° metal cone, O-ring on the boss face, 24° metal cone, taper thread with sealant, or face O-ring. This one line of notes kills the most expensive mistake in the whole path, because the -08 JIC and the -08 ORB trap in Step 1 cannot be caught by size alone.

Our earlier article on JIC 37° versus metric 24° cone fittings shows what happens when the seal question is skipped: the joint threads in, feels tight, and weeps on the first cycle.

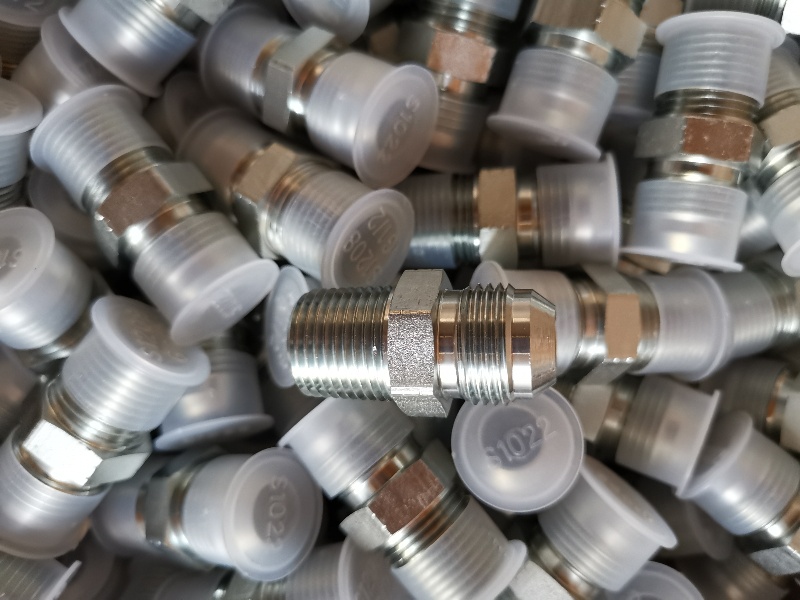

A JIC male closes on a 74° cone seat. The same 3/4-16 thread also carries an O-ring boss stud that seals at the boss face instead — the thread alone cannot tell you which joint you are buying.

Step 3: Pick the Configuration the Routing Needs

Now the geometry. Count the flow path on the drawing and choose the shape that does the job with the fewest joints:

• Straight when the line runs true through the port.

• Elbow when the routing turns — a 90° piece like the 1J9 JIC male elbow adapter replaces a straight joint plus a tube bend, and it clears obstructions a bent tube cannot.

• Tee when the drawing takes flow off mid-line, so the main path stays straight.

The 1J9 is the workhorse of the elbow family: carbon steel bar stock, 74° cone seat, dash sizes -04 upward. Hand Hydraulic machines it in standard angles and custom geometries from the customer print, and pressure-tests every piece before delivery. One part number, one joint, one line on the torque chart.

Step 4: Match the Pressure Envelope and the Series

A fitting that threads in and seals can still be the wrong fitting. Check the number it must survive. Two places where the envelope changes the choice:

• Series. The O-ring boss family comes in an S series (heavy, ISO 11926-2) and an L series (light, ISO 11926-3). Same threads, different duty. Pick by system pressure, not by what is on the shelf.

• Flange territory. Above roughly 3000 PSI on a vibrating line, or anywhere a pump port needs to be serviced without a wrestling match, a bolted flange beats a threaded stud. ISO 6162-1 (SAE J518) code 61 covers 3000 PSI circuits and code 62 covers 6000 PSI circuits. A 1JFL light-series flange adapter bridges a JIC hose end to an L-series flange port when the drawing crosses that line.

Step 5: Verify the Part Number Before You Release It

Four attributes, one checklist, thirty seconds on the quote:

1. Thread callout — e.g. 3/4-16 UNF, dash -08.

2. Seal type — 37° cone, O-ring boss, face O-ring, or taper.

3. Configuration — straight, elbow, or tee.

4. Standard and series — ISO 11926-3 L series, ISO 6162-1 code 61, and so on.

Order a first-article sample against the drawing and measure it, not photograph it. Hand Hydraulic prints the thread family on every carton label, so receiving can verify the box against the callout without opening it. If any of the four attributes cannot be confirmed on paper, stop before the PO, not after it.

What Each Skipped Step Costs

The shortcut fails one step at a time. Here is the bill for each:

Run the steps in order and none of these rows apply. The five steps take about ten minutes per port on a new drawing, and they only get faster as the callout conventions on your prints repeat.

Frequently Asked Questions

How do I read an SAE O-ring boss port callout on a hydraulic drawing?

Read it as dash size plus UN/UNF thread. A -08 port is written 3/4-16 UN-2B, a -12 port is 1-1/16-12 UN-2B. The callout names the port, so the fitting you order must carry the matching O-ring boss stud end per SAE J1926 / ISO 11926. If the callout stops at 3/4-16 UN with no boss note, the joint may be a JIC 37° cone instead — go back to the drawing and confirm the seal.

What is the difference between ISO 11926-2 and ISO 11926-3?

Both standards cover the straight-thread O-ring boss stud end with the same UN/UNF thread sizes. ISO 11926-2 defines the S series, the heavy-duty stud used at higher pressures. ISO 11926-3 defines the L series, the lighter stud used on most mobile and industrial circuits. Match the series to the system pressure envelope rather than to the thread, because the threads alone cannot tell the two apart.

Is the -08 JIC thread the same as the -08 SAE O-ring boss thread?

The threads are identical: both are 3/4-16 UNF on a -08. The joints are not. A JIC male seals on a 37° metal cone, while an O-ring boss stud seals on an elastomer O-ring at the boss face. Same size, different seal — which is exactly why the standard must travel with the thread on every callout and every PO line.

When should a flange connection replace a threaded stud end?

Move to a flange when pressure, vibration, or access make a threaded stud a poor host. ISO 6162-1 (SAE J518) code 61 flanges are rated for 3000 PSI circuits and code 62 flanges for 6000 PSI circuits. A bolted flange holds alignment without wrenching a swivel nut, which also makes pump and valve ports far easier to service.
