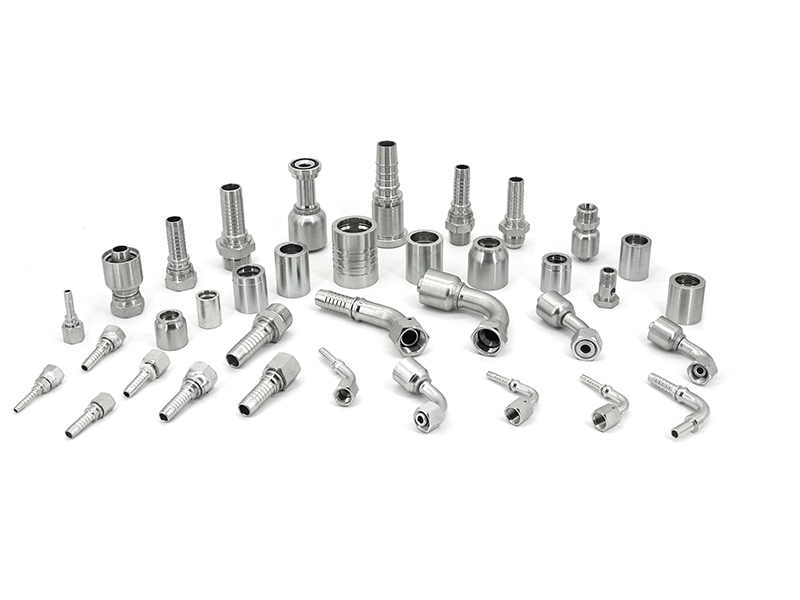

Every distributor who buys hydraulic fittings eventually asks the same shelf-space question: four thread families, limited capital, and no room for dead stock. Which bins go deepest? The short answer: JIC and NPT deserve your deepest bins, ORFS deserves a growing one, and BSPP deserves a shallow but complete one. This article turns that answer into a stocking list you can apply to your warehouse this week.
Here is the ranking in one table, then each tier explained.
Tier | Family | Standard | Stock depth | Why |
|---|---|---|---|---|
1 | JIC 37° | SAE J514 | Deepest | Highest turnover on mobile equipment |
2 | NPT | ANSI/ASME B1.20.1 | Deep but narrow | Every US-built machine has NPT ports |
3 | ORFS | SAE J1453 | Growing | OEMs specify it to cut leak warranty claims |
4 | BSPP / BSPT | ISO 228-1 / ISO 7-1 | Shallow and complete | Imported European and Asian machinery |
If you stock one family well, stock JIC. It is the default connection on construction machinery, agricultural equipment, and most mobile hydraulics in North America, and it is widely understood across the Middle East and Southeast Asia.
Three reasons it earns the deepest shelf:
The seal forgives field assembly. A JIC joint seals metal-to-metal on the 37° cone. A clean cone and correct torque make a sound joint without sealant.
One family covers many ports. From the pump inlet to the cylinder, JIC straight male, 90° male, and female swivel in dash -04 to -16 handle most hose jobs end to end.
Customers ask for it by name. Counter staff can match a JIC sample in seconds, which keeps the sale in your store instead of the competitor's.
Stocking priority: straight male and 90° male in -04, -06, -08, -12 first. Female swivel next. Add -10 and -16 once sell-through proves out.
NPT does not need shelf width. It needs shelf presence. Every US-built power unit, tank, valve manifold, and gearbox carries NPT ports, so the demand never spikes but never stops either.
The discipline is different from JIC. Keep the range tight:
Straight NPT male in -04 to -12 covers most static port connections.
One swivel option, such as the 15611SW NPT swivel male, covers ports where a rigid taper thread cannot be oriented without leaking.
Do not chase rare sizes. A special-order NPT 3" costs you nothing if nobody asks twice a year.
NPT seals on the taper with thread sealant, so remind counter staff to sell the sealant with the fitting. It is the smallest bin in the room and one of the steadiest earners.
ORFS is the family growing fastest on OEM drawings, and your stocking decision should follow the returns log, not just the sales log. Every hose shop knows the pattern: the fittings that sell fastest are not the ones that come back least. Taper threads sell fast and leak often. Face seals leak rarely.
ORFS captures an O-ring on a flat face. The joint resists vibration, handles over-pressure, and survives the assembly mistakes that taper threads punish. That is why OEMs keep converting high-vibration circuits to ORFS.
Stock straight male and 90° male in -04 to -12.
Pair the family with a conversion adapter, such as the 1FN NPT male to ORFS female, so customers can move one circuit to face sealing without re-porting the machine.
Quote ORFS proactively on any hose assembly for mobile equipment. The fitting costs more per piece and saves you a warranty visit.
BSPP and BSPT demand comes from imported machinery: European and Asian-built presses, injection molding machines, marine engines, and packager equipment. In Middle East and Southeast Asian plants this demand is real but fragmented across many sizes.
The trap for distributors is buying both families deep. They are different standards — BSPP is a parallel thread per ISO 228-1, BSPT is a taper thread per ISO 7-1 — but neither needs a deep shelf to serve. Stock shallow and complete:
Straight and 90° bodies in G1/4, G3/8, and G1/2 for both families.
A female BSP option for hose assemblies, such as the 22613 BSP female 60° cone interlock fitting.
Clearly separated bins. BSPP and BSPT share nominal sizes, and a mixed bin is how wrong-thread returns begin.
Expand only when your order history shows the same size leaving twice a quarter.
Order data at Hand Hydraulic tells a consistent story across regions. JIC and NPT reorder on a steady monthly rhythm. ORFS grows year over year as OEM spec sheets convert circuits to face seals. BSP orders cluster around specific machine brands rather than regions, which is exactly why shallow depth works: you are serving imported equipment, not a national install base.
The same data shows why bridge adapters matter. Distributors who carry two-family adapters in both directions fill more counter requests from the same shelf.
A wide family at shallow depth beats a deep family at one size: each thread family answers a different port.
15611SW — NPT swivel male straight fitting. The swivel nut lets the body orient after the taper thread is seated, which solves the "tight but pointing the wrong way" problem on rigid NPT ports.
1FN — NPT male to ORFS female. Converts a taper port to a face seal in one piece, covering two families from one SKU.
22613 — BSP female 60° cone interlock fitting for hose assemblies. The interlock grip resists hose pull-out, and the 60° cone seat matches the female BSP ports common on imported equipment.
All three are carbon steel with zinc plating. Stainless steel and special seal materials are available against drawing.
Run this checklist once a quarter. It takes one walk down the aisle.
Pull the returns log by thread family. If taper-thread leaks dominate, shift budget from Tier 2 toward ORFS.
Count special orders from the last 90 days. Any size you special-ordered twice is a size you should bin.
Check dash-size gaps. A missing -08 in an otherwise stocked family stops whole hose jobs. Gaps cost more than depth.
Ask your OEM customers one question. Which circuits are moving to face seals in next year's drawings? That answer is your ORFS forecast.
Verify bin labels. BSPP and BSPT in one bin, or JIC and ORFS mixed, produces returns that look like supplier faults but are shelf faults.
Usually taper threads installed with sealant: NPT and BSPT. The thread does the sealing, so results depend on installer technique. Face-seal families such as ORFS and JIC cone seats fail less often because the joint geometry does more of the work. If your returns log is heavy on taper-thread leaks, shift shelf budget toward ORFS.
Yes, but shallow. They are different standards and are not interchangeable, yet most demand concentrates in a few sizes. Stock straight and 90-degree bodies in G1/4, G3/8, and G1/2 for both families, and buy deeper only once your order history proves steady pull. The BSPP versus BSPT distinction matters at inspection, so keep the bins labeled and separate.
Dash -04 to -12 covers most hydraulic work on mobile and industrial equipment. Start every family at -04, -06, -08, and -12 in straight male bodies, then add -10, -16, and elbows once sell-through justifies it. A wide family at shallow depth beats a deep family at one size, because a missing middle size stops a whole hose job.
No. JIC seals metal-to-metal on a 37-degree cone. ORFS seals with an O-ring captured on a flat face. The threads may share nominal sizes, but the sealing geometry is completely different. Stock both families rather than trying to substitute one for the other, and use a bridge adapter such as an NPT male to ORFS female when a port conversion is needed.
Hand Hydraulic packs JIC, NPT, ORFS, and BSP adapters on the same pallet with the thread family printed on each carton label, so receiving can sort bins without opening boxes. Mixed pallets keep your freight cost down when you are topping up several families at once, and carton-level labeling prevents the most common warehouse error: one thread family filed into another family's bin.
Building out all four thread families? Send your dash-size list and thread mix — or your current top-20 reorder sheet. Hand Hydraulic quotes standard adapters from stock and custom geometries from drawing, usually within one working day.
