A hose shop in the Middle East called last month. Their technician had wrapped the BSPP end of a fitting with PTFE tape, tightened it until the wrench stopped moving, and still found a weep at 200 bar. The problem was not the torque. The problem was the thread family. BSPP and BSPT follow different ISO rules, and treating them the same is one of the most common leaks on a hydraulic bench. This article turns ISO 228-1 and ISO 7-1 into the checks an operator can actually use.
The machine was a compact power unit running a 3/8 inch line. The adapter was a 90° elbow with a BSPP male on one end and a JIC 74° cone on the other. The operator saw the "G3/8" callout on the drawing, found a fitting with the same nominal size, and installed it the way he always installed NPT: tape, wrench, done.
At 200 bar the port wept. He tightened it another quarter turn. The weep turned into a spray. The fitting came off, the O-ring was missing from the groove, and the port face had been distorted by the over-torque. The downtime cost more than the fitting.
The root cause was a mix-up between two thread families that share the same nominal sizes but seal in completely different ways.
ISO 228-1 defines the parallel pipe thread known as BSPP, or G thread. The key word is parallel. The thread flanks are straight. They do not wedge into each other to create a seal. The standard only controls the thread form: the 55° included angle, the pitch diameter tolerance, and the chamfer where required.
What ISO 228-1 does not do is seal the joint. Sealing is the job of a separate element pressed against a flat face. That element can be:
An O-ring seated in a groove on the male fitting, compressed against the port face.
A bonded washer under the hex shoulder.
A metal gasket or cone in some specialized ports.
If the seal is missing, damaged, or wrong for the fluid, the joint leaks regardless of how tight the thread feels. Overtightening a BSPP thread does not fix the seal. It damages the parts.
ISO 7-1 defines the taper pipe thread known as BSPT, or R thread. Here the thread itself does the sealing. The male thread is tapered, the female thread is tapered, and the joint seals by metal-to-metal interference along the thread flanks. The standard controls the taper angle, the thread length, and the engagement that produces a pressure-tight joint.
Because BSPT seals on the threads, a thread sealant such as PTFE tape or anaerobic paste is normal. The sealant fills the microscopic gaps between the flanks. The torque you feel is the resistance of the taper threads wedging together plus the sealant.
This is the opposite of BSPP. On a BSPP joint, tape is a contaminant. On a BSPT joint, tape is part of the procedure.
BSPP (ISO 228-1) | BSPT (ISO 7-1) | |
|---|---|---|
Thread form | Parallel | Taper |
Seal location | Port face via O-ring or washer | Thread flanks |
Sealant | Not used | PTFE tape or paste |
Over-torque risk | Distorts port, cracks body | Can split female port |
Common callout | G1/4, G1/2, BSPP | R1/4, R1/2, BSPT |
Most operators learn torque by feedback. When a BSPT fitting gets tight, the taper is wedging and the sealant is compressing. The feeling means something. When a BSPP fitting gets tight, the only thing happening is the threads are binding and the O-ring is being crushed. The feeling is misleading.
The correct approach is to identify the thread family first, then choose the sealing method, then tighten to a torque table rather than to feel. For BSPP, the critical measurement is not torque. It is whether the seal element is present and whether the port face is flat. For BSPT, the critical measurement is thread engagement and the quality of the sealant application.
This is why a hose shop keeps thread gauges and a set of identification charts near the bench. Guessing by eye is where the expensive mistakes start.
At Hand Hydraulic, every batch of BSP-threaded adapters goes through a short inspection routine before it leaves the floor. The goal is to make sure the operator at the other end gets a part that matches the drawing and the standard.
Thread gauge check. BSPP threads are checked with GO/NO-GO gauges to ISO 228-1. BSPT threads are checked to ISO 7-1. Mixed batches are separated before inspection so a parallel gauge never touches a taper part.
Seal element verification. O-ring grooves are checked for correct width and depth. Captive O-rings are fitted at assembly, not loose in the bag. Bonded washers are matched to the fitting size.
Port face and cone inspection. The sealing face is visually checked for scratches, tool marks, and burrs. A nick across a BSPP sealing face is rejected because it becomes a leak path under pressure.
Dimensional sample. A sample from each batch is measured for thread length, hex size, and body angle against the drawing.

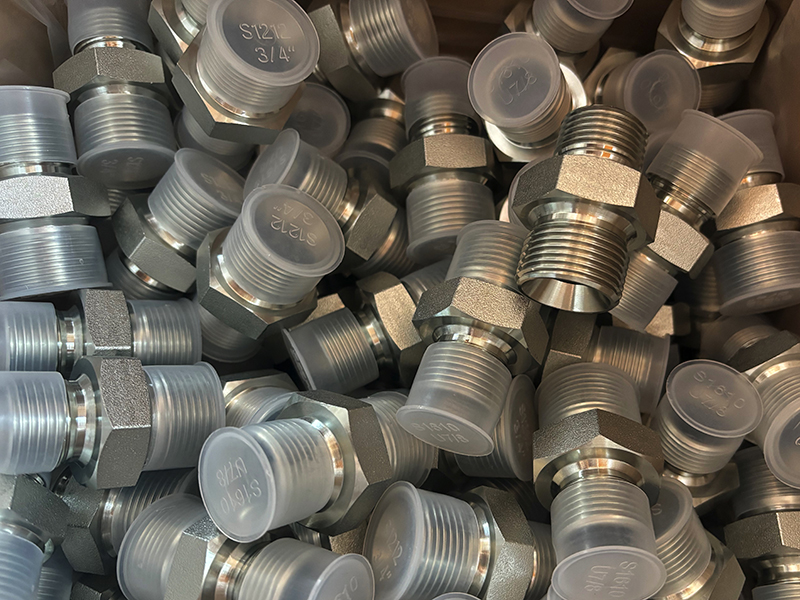

Protection and labeling. Threads are capped, and the carton label states the thread family clearly so the receiver does not mix BSPP and BSPT in the same bin.
These adapters are machined from solid carbon steel bar, with stainless steel offered against drawing. The thread lead and the sealing face are cut in the same CNC setup, which keeps the geometry consistent across a batch.
Here are three adapters from the catalog that make the BSPP versus BSPT distinction concrete.
The 1JG9 elbow: JIC 74° cone on one end, BSPP male O-ring on the other. The BSPP end seals at the port face, not on the thread.
1JG9 — 90° elbow, JIC 74° cone to BSPP male O-ring. The BSPP end uses an O-ring compressed against the port face. No tape.
1JG — straight adapter, JIC 74° cone to BSPP male O-ring. Same sealing principle as the 1JG9 in a straight body.
1JT — BSPT male to JIC male reducer. The BSPT end seals on the taper thread and normally takes thread sealant.
All three are machined from carbon steel with zinc plating. Stainless steel and special seals are available against drawing.
No. BSPP follows ISO 228-1, which is a parallel thread. The standard does not seal on the thread flanks. A BSPP port needs an O-ring, a bonded washer, or a metal gasket. Tape fills the thread clearance but does not create a pressure-tight seal, and shredded tape can contaminate the system.
No. BSPP is a parallel thread per ISO 228-1. BSPT is a taper thread per ISO 7-1. They have different thread forms, different sealing mechanics, and different gauges. A BSPP male will not seal correctly in a BSPT female, and vice versa.
Because BSPP does not seal by thread interference. Overtightening distorts the port, damages the O-ring, or cracks the female body without fixing the root cause. The seal comes from the O-ring or washer compressed against the port face. Check that the seal is present, clean, and correctly sized before tightening to the torque table.
NBR is standard for mineral oil and water-glycol up to about 100 degrees Celsius. FKM handles higher temperatures and phosphate ester fluids. For a BSPP male with a captive O-ring groove, use the O-ring supplied with the fitting. For ports that accept a bonded washer, match the washer to the fluid and temperature range.
No. The threads may start, but the sealing geometries are different. A BSPT male wedges into a tapered female. A BSPP male needs a flat sealing face and a separate seal. Mixing them gives an unreliable joint that leaks under pressure or vibration. Replace the fitting with the correct thread family.
Need BSPP, BSPT, or mixed-thread adapters? Send the thread callouts, dash sizes, material, and quantity — or a sample. Hand Hydraulic quotes standard sizes from stock and customized geometries from drawing, usually within one working day.
