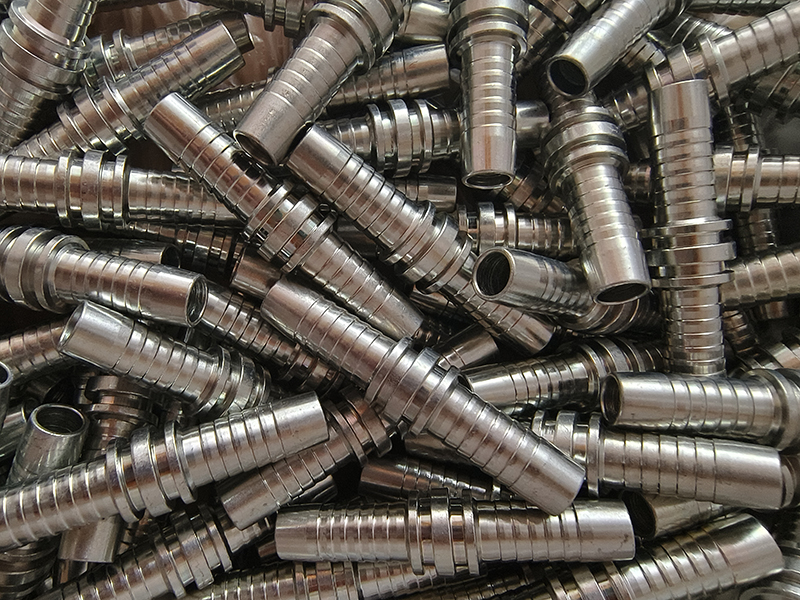

The 90011 double connector joins two wire braid hoses end to end. It is machined from solid carbon steel, sized 04 to 32, and works with hose bores from 6 mm to 50 mm.
HAND HYDRAULIC makes the 90011 in-house. CNC turning keeps every piece consistent, so each connector fits the hose the same way. No short cuts, no loose tolerance.
The 90011 is a double-ended hose connector. Both ends carry the same barbed profile. You push the connector into the hose bore, then crimp or clamp the outer sleeve. The result is a strong, leak-free joint between two hose ends.
It suits field repairs, hose assemblies, and any line that needs a reliable in-line splice.
Double-ended design
One part splices two hoses. Fewer parts in the assembly, less inventory to hold.
Carbon steel build
Solid bar stock, not cast. Handles high working pressure without flexing.
CNC turned profile
Consistent barbs and tight diameters across the whole batch. Hose grips evenly.
Full size range
Codes 04 to 32 cover bores from 6 mm to 50 mm. One source for every line.
Burr-free finish
Deburred edges protect the hose tube during assembly and service.
Batch-tested quality
Every production lot is checked for size, surface, and fit before it ships.
Pick the code that matches your hose bore. Dimensions below follow the standard 90011 series.
Code | Nominal Bore (mm) | Dash Size | Length L (mm) |
|---|---|---|---|
90011-04 | 6 | 04 | 69 |
90011-05 | 8 | 05 | 69 |
90011-06 | 10 | 06 | 73 |
90011-08 | 12 | 08 | 77 |
90011-10 | 16 | 10 | 89 |
90011-12 | 20 | 12 | 96 |
90011-16 | 25 | 16 | 114 |
90011-20 | 32 | 20 | 132 |
90011-24 | 40 | 24 | 162 |
90011-32 | 50 | 32 | 170 |
Construction Machinery
Mining Equipment
Agricultural Machinery
Industrial Hydraulics
Marine Systems
Hose Repair Shops
Any hydraulic line that carries pressure and needs a dependable splice is a fit for the 90011.
Factory direct. We machine, finish, and inspect the 90011 in our own plant. No middleman markup.
Consistent batches. CNC production means piece 10,000 fits like piece 1.
Flexible MOQ. Start with a small test order, scale up when it works.
Export experience. HAND HYDRAULIC ships hydraulic fittings to Europe and Central Asia every month. Packing and paperwork are handled.
Custom support. Need a different length or finish? Send us a drawing, we confirm tooling and lead time.
The 90011 covers codes 04 to 32, fitting hose bores from 6 mm to 50 mm. Length ranges from 69 mm to 170 mm depending on size.
Carbon steel, turned on CNC lathes at the HAND HYDRAULIC factory. The surface is clean and burr-free so the connector seats tightly inside the hose.
Yes. The 90011 is built for wire braid hydraulic hose. The barbed profile grips the hose inner tube before the outer sleeve is crimped or clamped.
Yes. HAND HYDRAULIC takes custom lengths, bore sizes, and surface treatments. Send your drawing or a sample, and our engineers confirm tooling and lead time.
Yes. HAND HYDRAULIC ships samples first so you can test fit and performance. The sample cost is deducted from the first production order.
Stock sizes leave the plant within 5 working days. Bulk orders of 5,000 pieces or more take 20 to 30 days, depending on size and finish.
