When a hydraulic hose blows off its fitting, the result is downtime, fluid loss, and sometimes injury. That's why the T-bolt hose clamp exists — it holds hoses onto fittings under high pressure and heavy vibration where standard worm-drive clamps fail.
This guide covers what T-bolt clamps are, when to use them, how to pick the right size, and what makes 304 stainless steel the standard material.
What Is a T-Bolt Hose Clamp

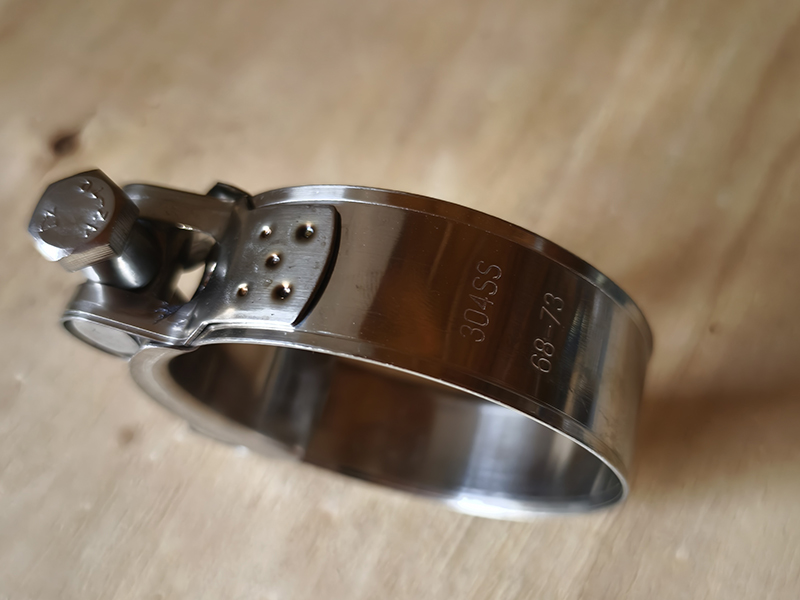

A T-bolt clamp (also called a V-band clamp or T-bolt band clamp) is a circular band with a single T-head bolt and a hex nut. You tighten the nut, and the band squeezes evenly around the hose.
Unlike worm-drive clamps that use a screw to pull a slotted band, T-bolt clamps apply force through one central bolt. Two clear advantages:
Higher clamping force — the bolt mechanism generates much more radial pressure than a worm screw.
No band slots — a smooth, unslotted band distributes pressure evenly. Less risk of hose damage and leaking.
For hydraulic hose fittings and high-pressure assemblies, this difference matters.
304 Stainless Steel — Why It Matters
304SS contains 18% chromium and 8% nickel. That composition forms a passive oxide layer on the surface, stopping rust in freshwater, mild chemicals, and outdoor conditions. For most industrial and marine environments, 304 is enough.
304 stainless steel holds its mechanical properties from -196°C up to about 870°C in intermittent service. That covers almost every standard hydraulic and fluid-transfer application.
If you're dealing with saltwater immersion, chlorine, or strong acids, 316 stainless steel adds 2–3% molybdenum for better pitting resistance. HAND HYDRAULIC offers both 304 and 316 grades — we'll recommend the right one based on your working conditions.
Material tip: Never mix carbon steel and stainless steel clamps on the same assembly. Galvanic corrosion between dissimilar metals can cause premature failure.
Size Chart and Selection
Picking the right size is straightforward: measure the outside diameter (OD) of the hose after it's pushed onto the fitting, then choose a clamp whose range covers that OD.
Clamp Size Range | Band Width | Typical Hose ID |
|---|---|---|
22 – 27 mm | 15 mm | 3/8" |
32 – 38 mm | 15 mm | 1/2" |
40 – 46 mm | 15 mm | 3/4" |
50 – 56 mm | 19 mm | 1" |
63 – 70 mm | 19 mm | 1-1/4" |
68 – 73 mm | 19 mm | 1-1/2" |
80 – 87 mm | 25 mm | 2" |
100 – 108 mm | 25 mm | 2-1/2" |
115 – 126 mm | 25 mm | 3" |
155 – 168 mm | 25 mm | 4" |
Need a size not listed here? We manufacture custom T-bolt clamps from 22mm to 260mm. Send us your specs.
Torque Specifications
Getting the torque right is critical. Too loose and the hose leaks. Too tight and you crush the hose inner tube, creating a hidden failure point.
15 mm band: 5 – 8 Nm
19 mm band: 7 – 12 Nm
25 mm band: 12 – 18 Nm
These are general guidelines. Always check the clamp manufacturer's datasheet and the hose manufacturer's recommendation. When you order from HAND HYDRAULIC, torque specs are included with the packing list.
Tighten in a smooth, steady motion — don't jerk the wrench.
After reaching the target torque, wait 30 seconds and re-check. The band may relax slightly.
For critical applications, retorque after the first 24 hours of operation.
For more on proper hydraulic assembly technique, see our article on torque vs. feel when tightening hydraulic fittings.
Where T-Bolt Hose Clamps Are Used
Excavators, loaders, presses — any equipment running hydraulic hose at 200+ bar. The clamping force of a T-bolt clamp keeps the hose seated on the hose fitting even under pressure spikes and vibration.
Seawater cooling lines, bilge systems, fuel hoses. 304SS handles the salt air. For submerged fittings, go with 316SS — both grades are available from our factory.
Truck intake pipes, turbocharger hoses, coolant lines. Vibration kills worm-drive clamps in these applications. T-bolt clamps hold up for the long haul.
Stainless steel meets sanitary requirements. The smooth band doesn't trap debris. We also offer electropolished finishes for CIP (clean-in-place) systems.
T-Bolt vs. Worm-Drive Clamp — Quick Comparison
Feature | T-Bolt Clamp | Worm-Drive Clamp |
|---|---|---|
Clamping force | High | Low to moderate |
Vibration resistance | Excellent | Poor |
Band type | Smooth, unslotted | Slotted |
Pressure rating | High-pressure systems | Low-pressure only |
Reusability | Yes | Limited |
Typical cost | Higher | Lower |
Best for | Hydraulic, marine, turbo | Garden hoses, low-pressure plumbing |
Bottom line: if the connection needs to hold under pressure and vibration, use a T-bolt clamp. For low-stakes, low-pressure applications, worm-drive is fine — and cheaper.
We supply both types. Tell us your application, and we'll recommend the right clamp.
Frequently Asked Questions
What is a T-bolt hose clamp used for?
A T-bolt hose clamp secures hoses onto fittings in high-pressure and high-vibration systems. Unlike worm-drive clamps, the T-bolt design uses a single bolt for even, strong radial clamping. HAND HYDRAULIC manufactures 304 stainless steel T-bolt clamps for hydraulic, marine, and industrial applications where leak-proof connections are critical.
Is 304 stainless steel good for hose clamps?
Yes. 304 stainless steel resists corrosion from water, mild chemicals, and outdoor exposure. It holds up well in temperatures up to 870°C. For saltwater or harsh chemical environments, HAND HYDRAULIC also offers 316 stainless steel T-bolt clamps with higher molybdenum content for extra corrosion resistance.
How do I choose the right size T-bolt hose clamp?
Measure the outside diameter (OD) of the hose after it is pushed onto the fitting. Select a clamp whose size range covers that OD. For example, a hose with 70mm OD fits a 68–73mm clamp. HAND HYDRAULIC stocks sizes from 22mm to 260mm and can custom-produce any diameter.
What torque should I apply to a T-bolt hose clamp?
Typical torque ranges are 7–10 Nm for smaller clamps and 12–18 Nm for larger ones. Always follow the manufacturer's spec. Over-torquing can crush the hose; under-torquing causes leaks. HAND HYDRAULIC provides torque recommendations with every order.
Can HAND HYDRAULIC customize T-bolt hose clamps?
Yes. HAND HYDRAULIC offers OEM and ODM customization — different band widths (19mm, 25mm, or custom), 304/316 stainless steel, special coatings, and custom size ranges. As an ISO 9001 certified factory with years of hydraulic fittings experience, HAND HYDRAULIC supports both small-batch prototyping and high-volume production.
T-bolt clamp vs. worm-drive clamp — which is better?
T-bolt clamps deliver higher, more uniform clamping force and resist vibration loosening. Worm-drive clamps are cheaper and fine for low-pressure uses. For hydraulic systems, engine bays, or any high-vibration setup, T-bolt is the safer choice. HAND HYDRAULIC supplies both types and can recommend the right option for your application.
