English Views: 0 Author: Jodie Publish Time: 2026-06-09 Origin: Site
Brass-body, thread-to-connect couplings rated to 3,000 PSI. Low spill. Full-pressure connect and disconnect. Interchangeable with Parker 6100, Faster FB, Aeroquip 5100, and Hansen 96.
The HAND HYDRAULIC KZE-BB 6100 Series is a threaded hydraulic quick coupling built for circuits that run at pressure and can't afford to be shut down just to swap a line. You thread the coupler onto the nipple by hand or wrench — no sleeve-pull, no ball-lock mechanism. Once seated, a machined indicator groove on the nipple tells you the valves are open and fluid is flowing.
Both coupler and nipple bodies are brass. That's a deliberate choice: brass handles corrosion from oils, water, and most non-aggressive fluids better than plated steel, and it doesn't rust when the coupling sits in a wet environment.
Most quick couplings require you to bleed pressure before connecting. The 6100 doesn't. Here's what makes that possible:
The valve seal is bonded to the valve poppet — it can't blow out or shift during a full-pressure connect or disconnect. This is the core reason the coupling can handle live-circuit operation without dumping fluid.
A groove is machined into the nipple body. When the coupler threads down far enough to reach the groove, you see it — and you know the connection is complete and the valves are fully open. No torque guesswork, no partial-flow surprises.

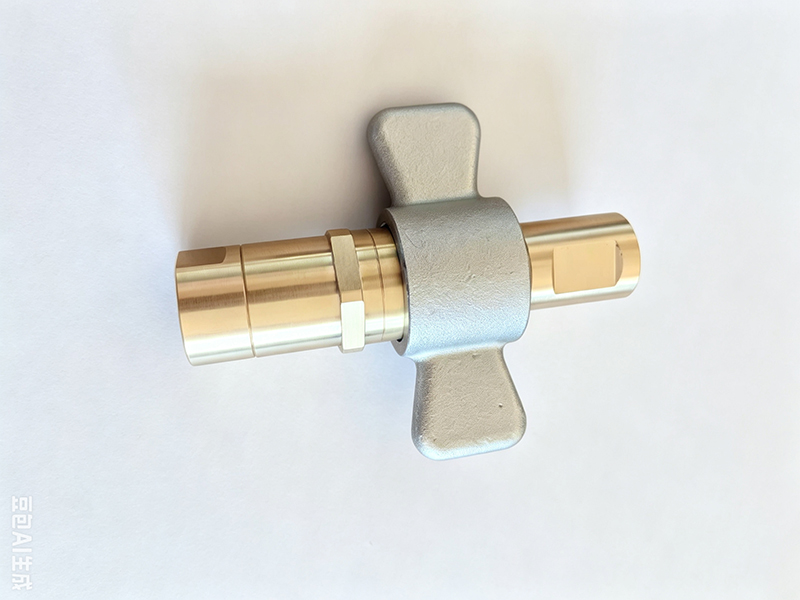

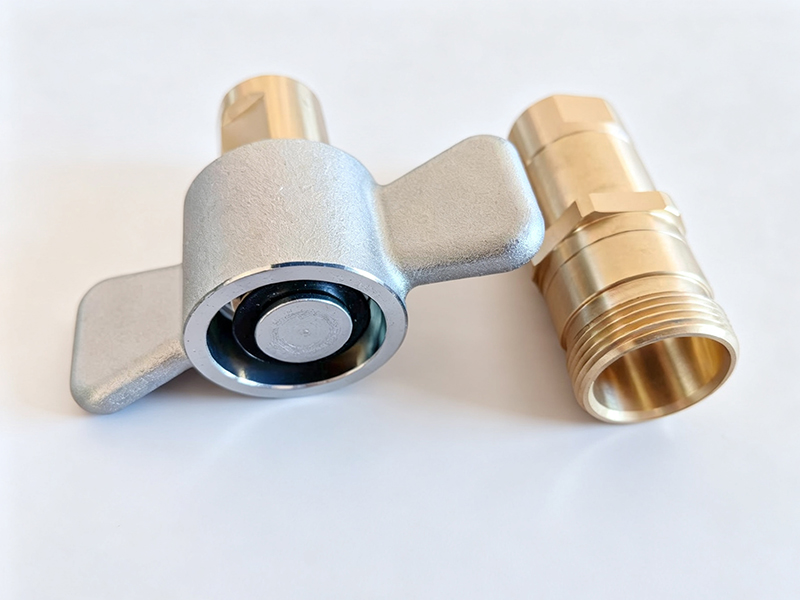

The heavy-duty wing nut sleeve is built to be hammered on or off. If you're working a submersible pump in a muddy pit and your wrench is in the truck, you can tap the wing nut with a hammer to tighten or break the connection loose. The steel hex nut option is available for applications where you prefer a wrench-driven connection.
Parameter | Detail |
|---|---|
Series | 6100 |
Connection type | Thread-to-connect |
Max rated pressure | 3,000 PSI (207 bar) |
Body material | Corrosion-resistant brass |
Sleeve options | Steel hex nut / Heavy-duty wing nut |
Valve type | Flush face, low spill |
Connect under pressure | Yes |
Disconnect under pressure | Yes |
Standard end configuration | Female pipe thread (NPT / BSP) |
Bulkhead mount option | Available (flange) |
Brand | HAND HYDRAULIC |
If you're currently running any of the following series, the HAND HYDRAULIC KZE-BB 6100 drops in as a direct replacement. Same interface dimensions. Same flow path. No adapters.
Brand | Interchangeable Series |
|---|---|
Parker | 6100 Series |
Faster | FB Series |
Aeroquip | 5100 Series |
Hansen | 96 Series |
This cross-compatibility is useful if you're sourcing alternatives, consolidating suppliers, or replacing couplings on equipment that originally shipped with one of these brands. The HAND HYDRAULIC KZE-BB 6100 fits the same nipple profile, which means your existing installed base doesn't need to change.
The thread-to-connect design and brass construction make the 6100 a common choice in applications where the coupling is exposed to fluids, weather, or rough handling:
Submersible pumpsOil field equipmentDump trailersEngine test standsBulk liquid transfer
Brass bodies don't corrode in continuous wet service. The thread-to-connect mechanism doesn't rely on sleeve operation, which can bind when covered in silt or biofilm.
The wing nut sleeve is designed to be struck with a hammer — standard practice on rig floors and in field repairs where hand tools may not be available. Rated to 3,000 PSI, which covers most upstream and midstream hydraulic circuits.
High-flow flush valves reduce restriction in the hydraulic raise/lower circuit. Threaded connections stay put under vibration better than push-to-connect designs.
The bonded valve seal prevents contamination of test fluids during frequent connect/disconnect cycles. The visual indicator groove confirms flow is established before the test begins.
Low-spill flush face design minimizes product loss and environmental exposure during tank-to-tank transfers. Connect under pressure means you don't drain the line to couple up.
Three things set this coupling apart from generic threaded couplings:
Live-circuit operation. Connect and disconnect at full pressure. No bleed-down. No spill. The bonded valve seal makes this possible.
Positive visual confirmation. The indicator groove tells you the connection is done. You don't torque to a spec — you thread until you see the groove.
Field-tough hardware. Wing nut sleeve that takes hammer blows. Brass body that doesn't rust. Threaded joint that won't vibrate loose.
If you're comparing the 6100 against ISO A push-to-connect couplings or ball-lock designs, the trade-off is speed of connection versus security. Thread-to-connect takes a few more seconds, but it won't back off under shock load, and it can be operated with gloved or dirty hands where a sleeve mechanism might bind.
S1 Series ISO 7241-A quick couplings — push-to-connect, high-flow, steel body
Parker 82 Series push-in fittings — tube-to-thread hydraulic connections
Hose clamps — heavy-duty clamping for hydraulic hose assemblies
High-pressure ball valves — shut-off valves rated to 5,000 PSI
The HAND HYDRAULIC KZE-BB 6100 Series is rated to 3,000 PSI (207 bar). It can be connected and disconnected under full system pressure without bleeding the circuit first.
Yes. The HAND HYDRAULIC KZE-BB 6100 Series is fully interchangeable with Parker 6100, Faster FB, Aeroquip 5100, and Hansen 96 series. No adapters needed.
Both the coupler and nipple bodies are corrosion-resistant brass. This makes the HAND HYDRAULIC KZE-BB 6100 suitable for use with standard hydraulic oils and non-aggressive fluids, including submerged and marine environments.
Yes. The HAND HYDRAULIC KZE-BB 6100 is specifically designed for connect-under-pressure operation. The bonded valve seal stays in place during both connection and disconnection at full rated pressure, preventing spillage and contamination.
The indicator groove is a machined ring on the HAND HYDRAULIC KZE-BB 6100 nipple body. When the coupler is threaded on far enough to reach the groove, it tells you the connection is complete and the valves are fully open. No guesswork involved.
The standard configuration is female pipe thread (NPT or BSP). Custom end configurations, including male threads and flange mounts, are available from HAND HYDRAULIC on request for OEM and bulk orders.
