Mastering Ultra-High Pressure: The Engineering Behind HAND HYDRAULIC's SAE Flange Face Seals

In industries where failure is not an option—from deep-sea oil exploration to mega-scale metal forming—hydraulic systems operate at pressures exceeding 1,000 bar. The integrity of every connection is paramount. At HAND HYDRAULIC, a global supplier of heavy-duty fluid power components, we engineer SAE flange face seals to be the most reliable link in your ultra-high pressure chain. This article breaks down the precise engineering that allows these connections to perform under extreme conditions.

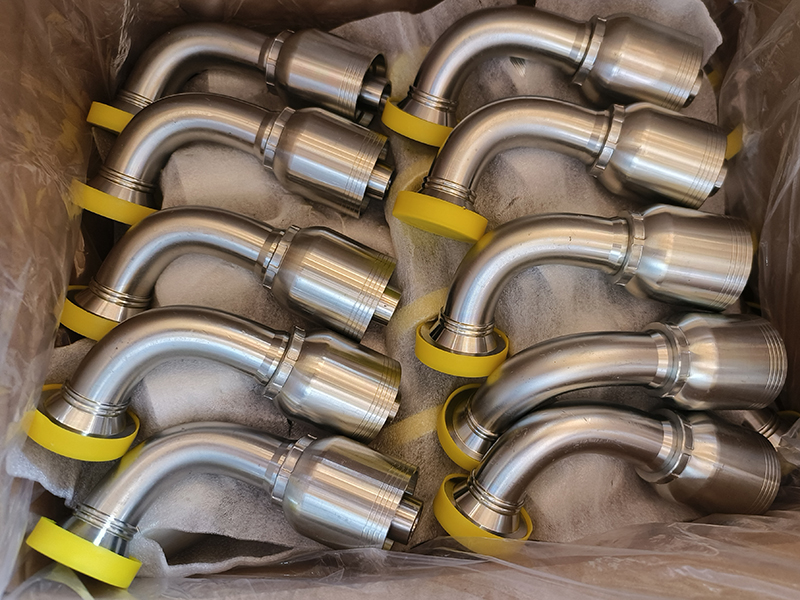

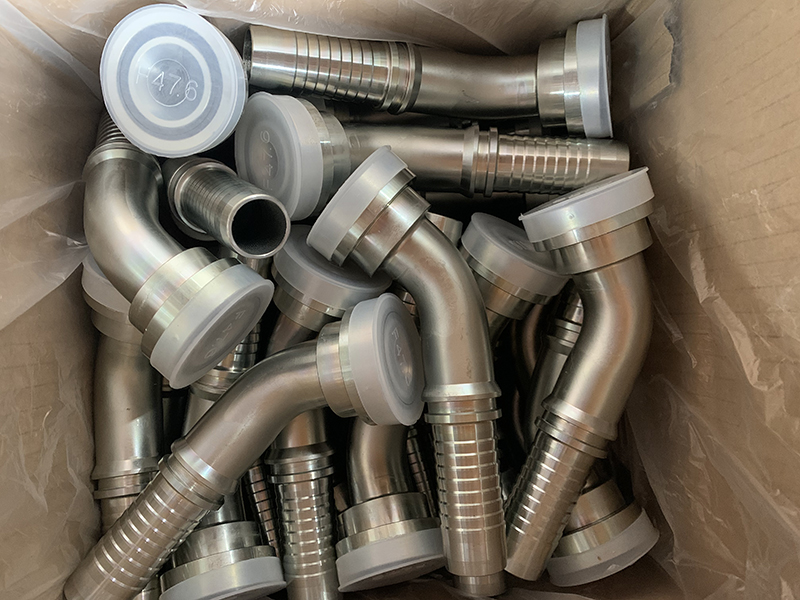

The Anatomy of an Ultra-High Pressure Seal

The SAE flange face seal, or flat-face seal, differs fundamentally from threaded or bite-type fittings. Its reliability stems from a redundant, two-stage sealing mechanism:

1. Primary Metal-to-Metal Seal:​ Two finely finished flange faces (typically with a surface roughness of Ra ≤ 0.8 μm) are drawn together under high bolt preload. This creates the initial, rigid, leak-tight barrier.

2. Secondary Elastomeric Seal:​ An O-ring, seated in a precision-machined groove, is compressed between the flanges. It acts as a resilient gasket, sealing any microscopic imperfections in the metal surfaces. Under pressure, system fluid energizes the O-ring, improving its seal—a key advantage in dynamic pressure applications.

How HAND HYDRAULIC Ensures Unmatched Performance

1. Precision Manufacturing & Tolerances

At HAND HYDRAULIC, we hold flange faces to sub-micron level flatness and finish specifications. This eliminates gaps and ensures even pressure distribution across the entire sealing surface, preventing localized stress and potential extrusion of the O-ring under ultra-high pressure (UHP).

2. Material Science for Extreme Environments

• Flanges:​ We utilize forged, high-yield-strength alloy steels (e.g., AISI 4140, 4340), heat-treated to optimal hardness (typically HRC 28-35) for an ideal balance of strength and toughness, resisting cracking and deformation.

• O-Rings:​ Standard nitrile rubber is insufficient for UHP. We specify advanced compounds like Polyurethane (PU), Hydrogenated Nitrile Butadiene Rubber (HNBR), or specialized thermoplastics that offer superior extrusion resistance, minimal compression set, and compatibility with aggressive hydraulic fluids.

3. Robust Design Against Extrusion

The #1 failure mode in UHP seals is extrusion—where the soft seal material is forced into the gap between metal parts. HAND HYDRAULIC flanges combat this with:

• Minimized Clearance:​ Exceptionally tight machining tolerances on the seal gland and pilot diameters.

• Anti-Extrusion Rings:​ For the most demanding applications, we integrate proprietary backup rings (often made of PTFE or durable plastic) that physically support the O-ring, preventing it from flowing into the gap.

4. Bolt Preload: The Critical Factor

The sealing force comes from the bolts, not system pressure. Insufficient preload leads to leakage; excessive preload can warp flanges. We provide:

• Precision-Grade Hardware:​ High-strength, strain-hardened bolts.

• Exact Torque Specifications:​ Calculated to achieve the correct clamp load for your specific flange size and pressure rating.

• Technical Guidance:​ Our support includes tightening sequences (e.g., star-pattern) to ensure a uniform seal.

Applications Demanding HAND HYDRAULIC Seals

• Test Benches & Pressure Vessels:​ For aircraft component testing or material science research.

• Hydraulic Presses & Plastic Injection Molding:​ Where pressures routinely reach 1,500-3,000 bar.

• Subsea & Offshore Equipment:​ Remotely Operated Vehicles (ROVs), blowout preventers, and Christmas tree assemblies.

• High-Pressure Accumulator Systems:​ In energy storage and pulsation damping.

Selection & Installation Best Practices

1. Match the Rating:​ Always select a flange with a pressure rating exceeding your maximum system pressure, including pressure spikes.

2. Inspect Surfaces:​ Before assembly, inspect seal faces and O-rings for nicks, scratches, or contamination. A single grain of sand can cause a leak path.

3. Use Clean Hydraulic Fluid:​ Particle contamination is a major cause of seal and system failure.

4. Follow Torque Procedures:​ Use a calibrated torque wrench and follow the specified tightening pattern in multiple incremental steps.

Why Partner with HAND HYDRAULIC?

Choosing HAND HYDRAULIC for your ultra-high pressure connections means more than buying a component—it’s accessing deep engineering expertise. Our SAE flanges are not just manufactured; they are engineered, validated, and documented to deliver fail-safe performance. We support you from specification through installation, ensuring your system’s integrity from the ground up.

Tackling an extreme pressure challenge?​ Trust the seals engineered to hold the line. Contact the HAND HYDRAULIC team today​ for technical datasheets, application consultation, and a quote on SAE flanges built for your most demanding projects.

HAND HYDRAULIC – Powering Industry with Uncompromising Connections.
