Intro: In the world of hydraulic power, a system is only as strong as its most vulnerable link. Often, that link is the connection between the hose and the fitting. A secure, leak-free coupling is non-negotiable for safety, peak performance, and equipment longevity. This essential guide covers the core types, correct methods, and critical best practices for industrial hose connections. Brought to you by HAND HYDRAULIC, a trusted name in durable hydraulic tools and solutions.
Decoding Hose Coupling Types
Choosing the correct coupling is foundational. Here’s a breakdown of primary types:

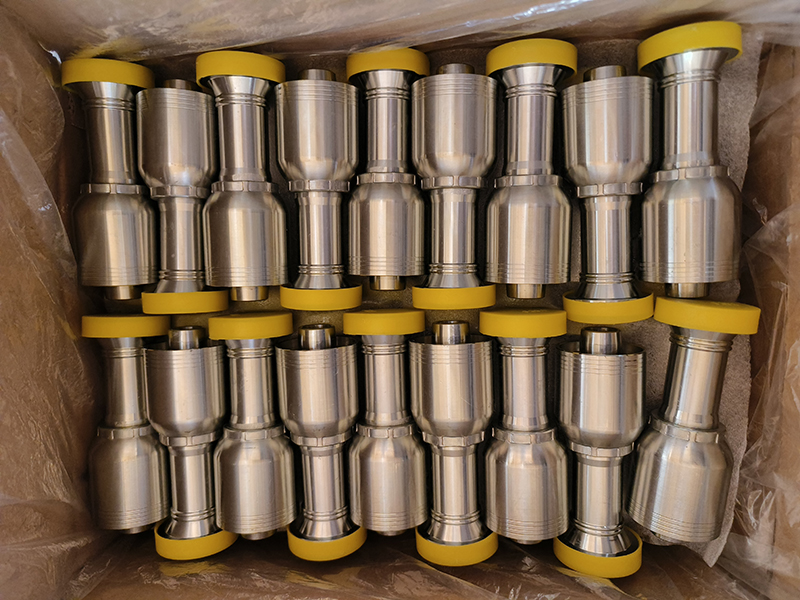

Permanent (Crimped) Couplings: The industry standard for high-pressure hydraulic systems. A coupling is mechanically attached using a crimping machine, creating a robust, one-piece assembly.
Reusable (Screw-Together) Couplings: Designed for field service, allowing the fitting to be detached and reassembled onto a new hose end. Ideal for maintenance and repairs.
Push-to-Connect Couplings: Enable quick, tool-free assembly for certain low to medium-pressure fluid and pneumatic lines by pushing the hose onto a stem.
Cam & Groove (Quick Disconnect): Facilitate rapid connection/disconnection for transfer applications, often seen in fueling or chemical handling.
Core Connection Methods Demystified
The Crimp Connection
The hallmark of hydraulic reliability. It requires a crimping machine and precisely matched fitting, hose, and die set. The crimper permanently deforms the fitting's ferrule onto the hose, creating a superior, high-pressure seal. Critical Note:A proper crimp depends on correct die selection and machine calibration. Quality hand-held hydraulic crimping tools, like those from HAND HYDRAULIC, ensure consistent, on-site results.
Threaded Connections

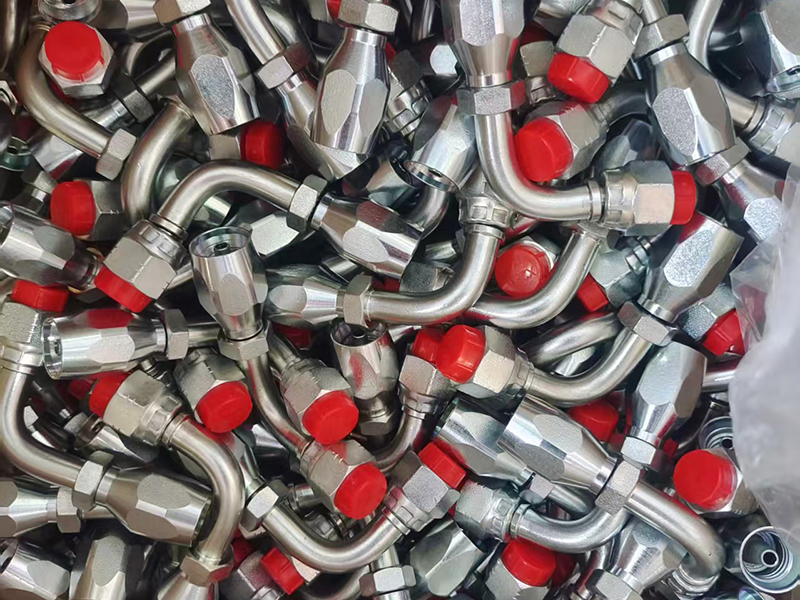

Utilizes tapered (NPT) or straight (BSPP, SAE) threads. Common for ports, adapters, and some reusable fittings. Always use the correct thread sealant (tape or liquid) and avoid over-torquing to prevent damage.
Clamp (Hose Clamp) Connections
Used primarily for low-pressure suction or return lines. A barbed fitting is inserted into the hose, and a clamp (worm gear or T-bolt) is tightened over it. Ensure the hose is fully seated on the barb for a secure hold.

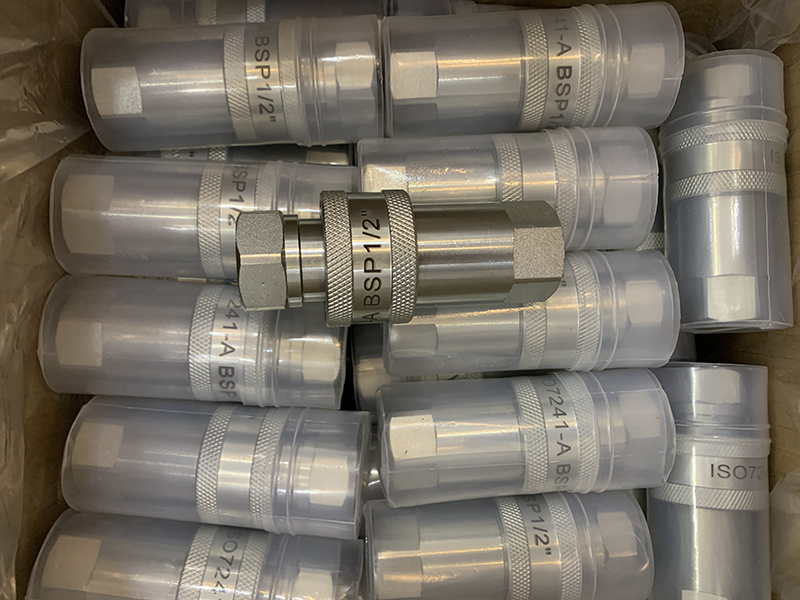

Quick Disconnect Systems
Designed for efficiency where lines must be disconnected frequently. The coupler and nipple lock together with a simple push-and-pull or sleeve mechanism, sealing automatically upon connection.
The HAND HYDRAULIC 4-Step Protocol for a Perfect Connection
Select with Precision: Match the coupling to the hose specification (I.D., O.D., pressure rating) and the system's media, temperature, and working pressure. Never mix thread standards.
Prepare Meticulously: Cut the hose square with a sharp cutter. Deburr and clean the hose interior and fitting stem. Any debris can cause seal failure.
Assemble with the Right Tool: This is paramount. For crimped fittings, use a properly calibrated crimper and the manufacturer-specified die. For clamped fittings, tighten the clamp evenly. For threaded fittings, start threads by hand to prevent cross-threading.
Inspect & Test: Visually verify the assembly. Perform a system pressure test slowly, checking for leaks at the connection. Never bypass this step.
Maintenance & Safety: The Proactive Approach
Routine Inspection: Regularly check hoses and couplings for leaks, abrasion, cracks, corrosion, or twisted assemblies. Follow a scheduled replacement program.
Avoid Installation Stress: Ensure hoses are not stretched, tightly bent below minimum radius, or subjected to twist during installation.
Use Quality Tools: The integrity of a crimped connection depends heavily on the tool. Investing in reliable, durable crimping equipment is investing in system safety.
Why Your Connection Depends on HAND HYDRAULIC
Achieving a flawless, durable hose assembly isn't just about the components—it's about the tools and expertise behind the connection. As a specialized manufacturer of hydraulic tools, HAND HYDRAULIC provides the reliability you need. From precise, heavy-duty hand hydraulic crimpers and dies to a full suite of assembly tools, we ensure you have the right equipment to make every connection count, supporting the safety and uptime of your operations.
Build with confidence. Connect with strength. Explore the HAND HYDRAULIC range of professional crimping tools and solutions to secure your hydraulic systems.
