RH
BC

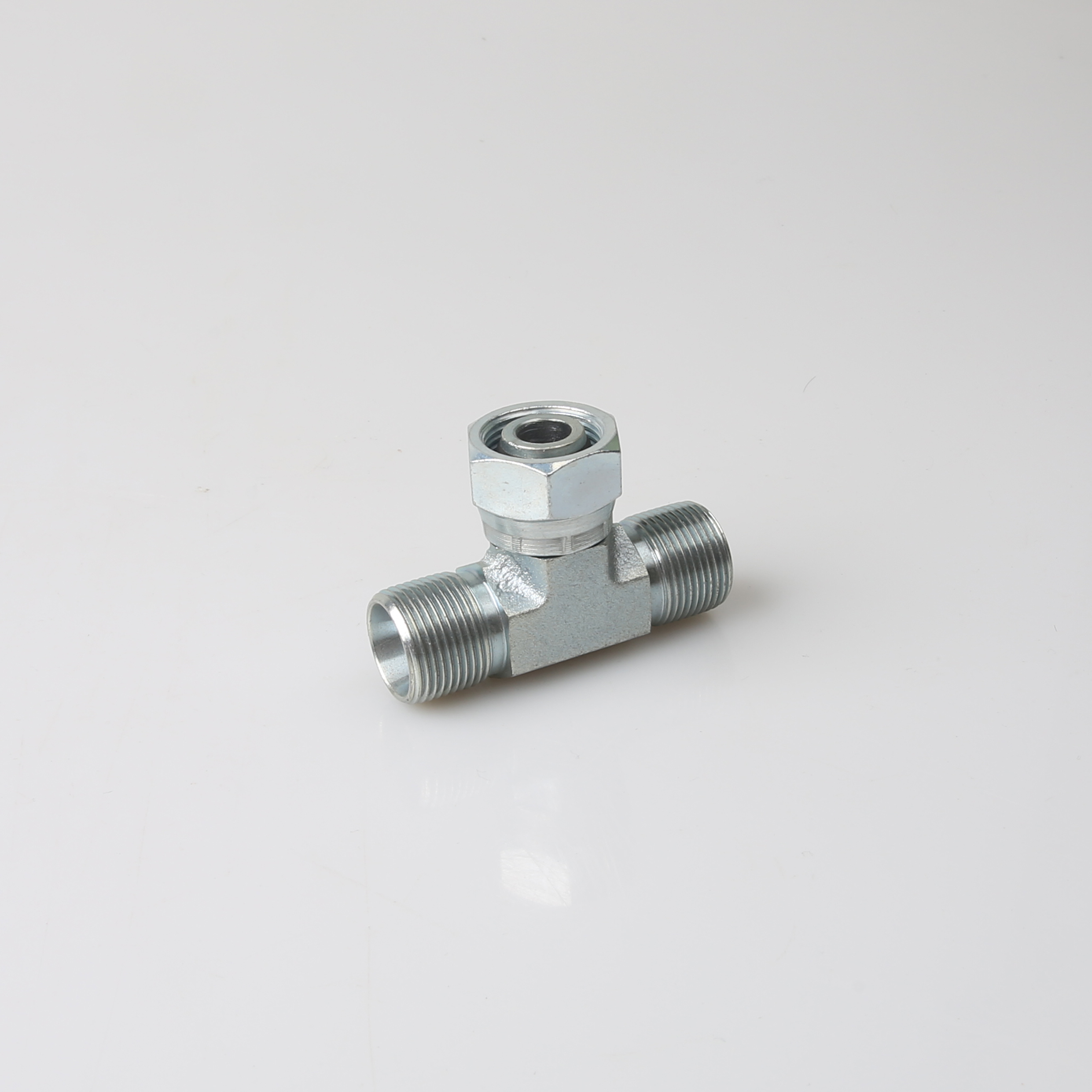

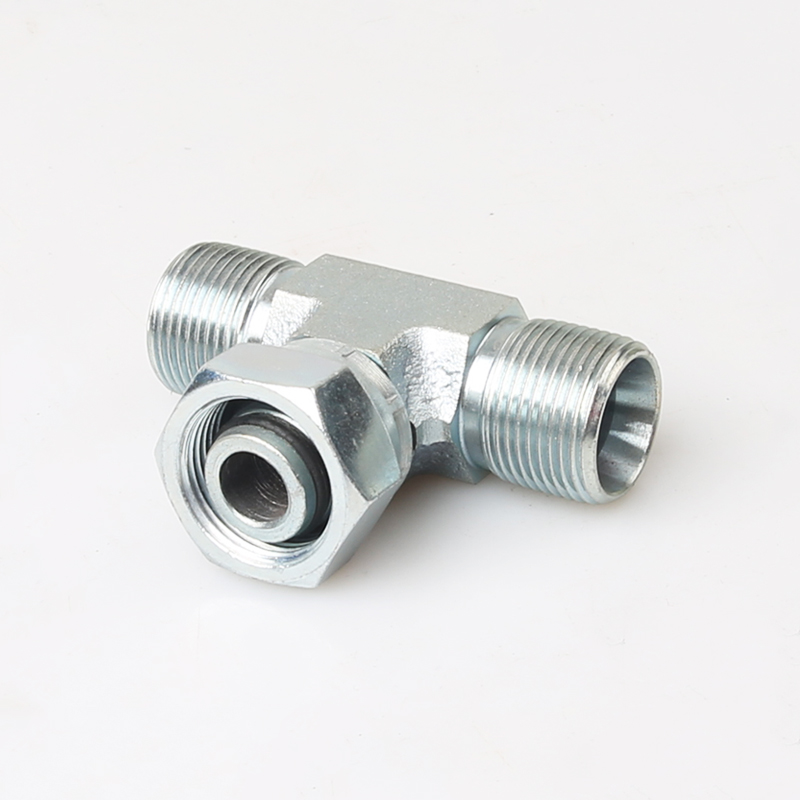

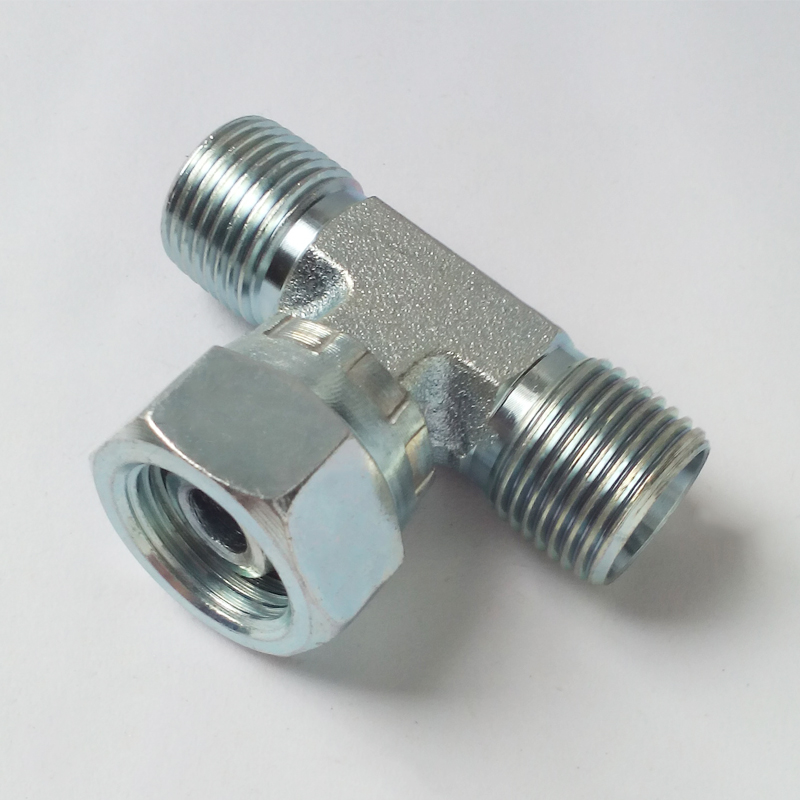

BC METRIC FEMALE 24°/METRIC MALE 24°Light Type steel pipe fitting seller factory.

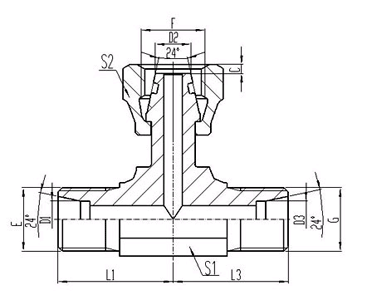

| PART NO. | THREAD (EFG) | TUBE O.D. (D1D2D3) | DIMENSIONS (L1,L3) | DIMENSIONS (C) | DIMENSIONS (S1) | DIMENSIONS (S2) |
| BC-14 | M14X1.5 | 8 | 25.3 | 2 | 14 | 19 |
| BC-16 | M16X1.5 | 10 | 27.2 | 2 | 16 | 22 |
| BC-18 | M18X1.5 | 12 | 28.5 | 2.5 | 19 | 24 |
| BC-22 | M22X1.5 | 15 | 30.5 | 2.5 | 22 | 27 |
| BC-26 | M26X1.5 | 18 | 35.5 | 2.5 | 27 | 32 |
| BC-30 | M30X2 | 22 | 41 | 4 | 30 | 36 |
| BC-36 | M36X2 | 28 | 44.7 | 4 | 36 | 41 |
| BC-45 | M45X2 | 35 | 52.5 | 5 | 48 | 55 |
| BC-52 | M52X2 | 42 | 58.5 | 5.5 | 55 | 60 |
