| 00210: | |
|---|---|
| Quantity: | |
RH
00210

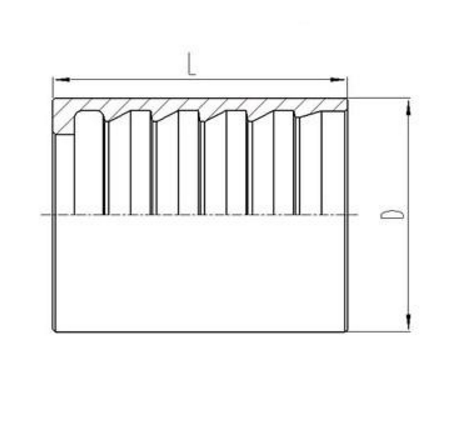

| PART NO. | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (D) | DIMENSIONS (L) |
| 00210-04 | 6 | 4 | 22.2 | 30 |
| 00210-05 | 8 | 5 | 23 | 31 |
| 00210-06 | 10 | 6 | 25 | 32 |
| 00210-08 | 12 | 8 | 28.3 | 34 |
| 00210-10 | 16 | 10 | 31.5 | 37 |
| 00210-12 | 20 | 12 | 35.5 | 43 |
| 00210-16 | 25 | 16 | 45 | 50 |
| 00210-20 | 32 | 20 | 55 | 59 |
| 00210-24 | 38 | 24 | 62.5 | 74 |
| 00210-32 | 51 | 32 | 75.5 | 78 |
100% testing before delivery.
| PART NO. | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (D) | DIMENSIONS (L) |
| 00210-04 | 6 | 4 | 22.2 | 30 |
| 00210-05 | 8 | 5 | 23 | 31 |
| 00210-06 | 10 | 6 | 25 | 32 |
| 00210-08 | 12 | 8 | 28.3 | 34 |
| 00210-10 | 16 | 10 | 31.5 | 37 |
| 00210-12 | 20 | 12 | 35.5 | 43 |
| 00210-16 | 25 | 16 | 45 | 50 |
| 00210-20 | 32 | 20 | 55 | 59 |
| 00210-24 | 38 | 24 | 62.5 | 74 |
| 00210-32 | 51 | 32 | 75.5 | 78 |
100% testing before delivery.
